مراجعة اختبار نهاىى تشغ 806 فصل ثاني 2023
Quiz by 1st Machine Shop
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

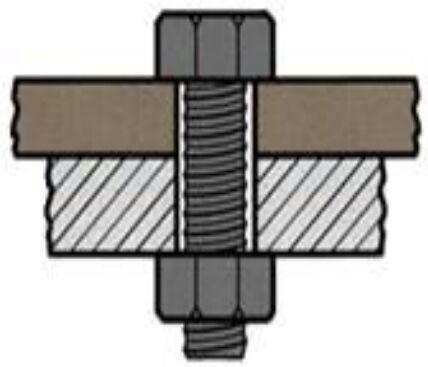

Fastening method in figure is
Blot & nut
Spline
Circlip
Bolt & threaded hole
Tool in figure is used to check machine
Weight
Speed
Alignment
Level
Fastening method in figure is
Tool in figure is used to check machine
Maintenance tool shown in figure is used to
The Tool shown in figure is called

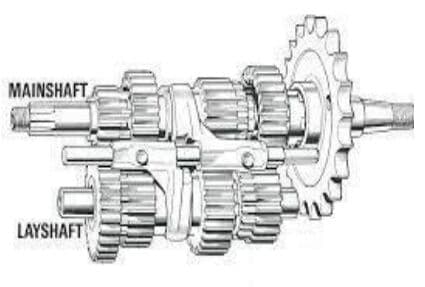

Type of lubricant for speed gear box
Name of the tool shown
Equipment shown in figure is used for:
Allen keys are used to turn
A process of keeping a machine in good working condition is:
The action taken when has occurred & need a system failure urgent repair is:
Equipment shown in figure is called
Tool in figure is used for:
Tool in figure is called:
Tool in figure is called:
Tool in figure is called:
Tool in figure is called:
Fastening method used in figure is
Fastening method use in figure is:
The Tool shown in figure is called
Fastening method used in figure is
Fastening method used in figure is
Tool in figure is called
The process that grinds outside surface of round parts is:

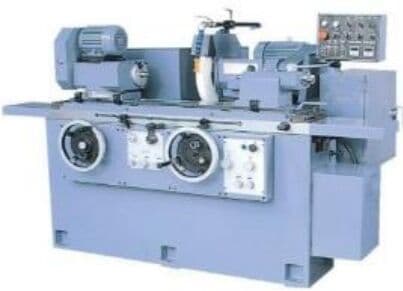

The figure below shows a:
The process that grind metal internally

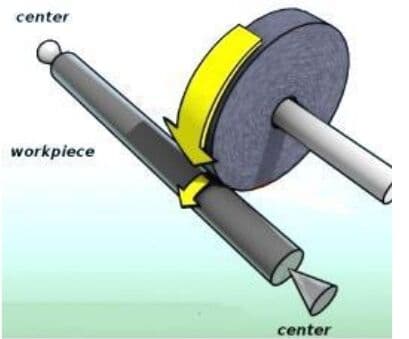

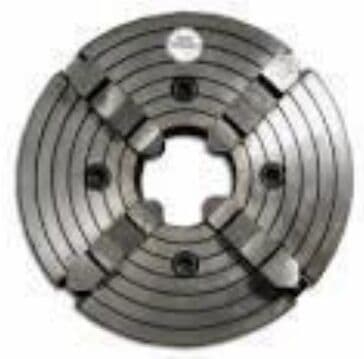

Work Holding method shown in figure

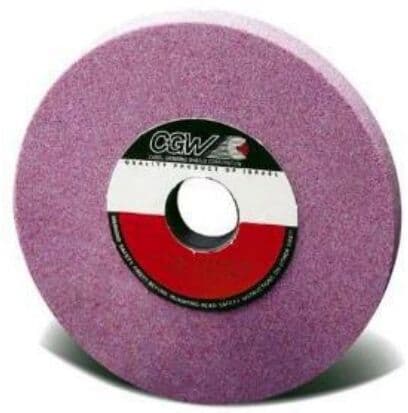

Grinding wheel type shown in figure is
Grinding wheel type shown in figure is
Grinding wheel type shown in figure is
Grinding wheel type shown in figure is
Work Holding method shown in figure is:
Work Holding method shown in figure is:

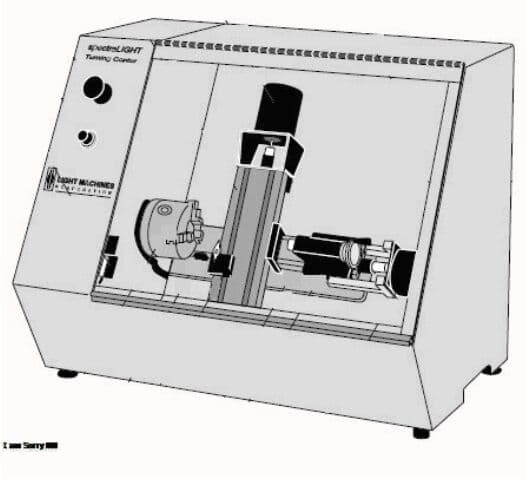

What is the type of the machine?
What is the type of the machine?
The four main steps to be followed in CNC Process
What is CNC means
What is CAD means

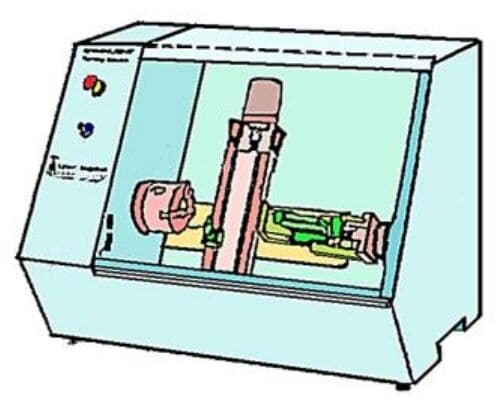

How many axis of this CNC lathe have?

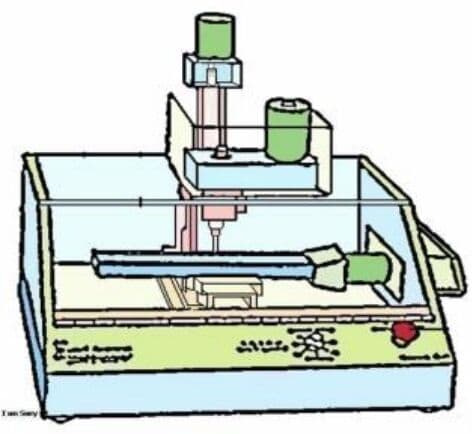

How many axis of this CNC Mill have?
Calculate the spindle speed of grinding machine, if the grinding wheel diameter is 320mm and the cutting speed 1810 meter per minutes.
Linking the labeled parts name of the number part machine showing in the figure?
Main Parts of Milling Machine
Write the Codes that represent the following (Rapid Traverse)
Write the Codes that represent the following (Linear interpolation )
The letter (S) in programming codes refers to
Program End, reset to start
Spindle ON (CW Rotation)
Spindle ON (CCW Rotation)
Absolute Dimension
Spindle Stop
End of Program
Identify the value of X and Y coordinates in mm for CNC mill programming by using Incremental Coordinate
Identify the value of X and Y coordinates in mm for CNC lathe programming by usingAbsolute Coordinate.
