مراجعة مقرر رسم 815 المستوى الثالث 2025 2026الفصل الاول
Quiz by 1st Machine Shop
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

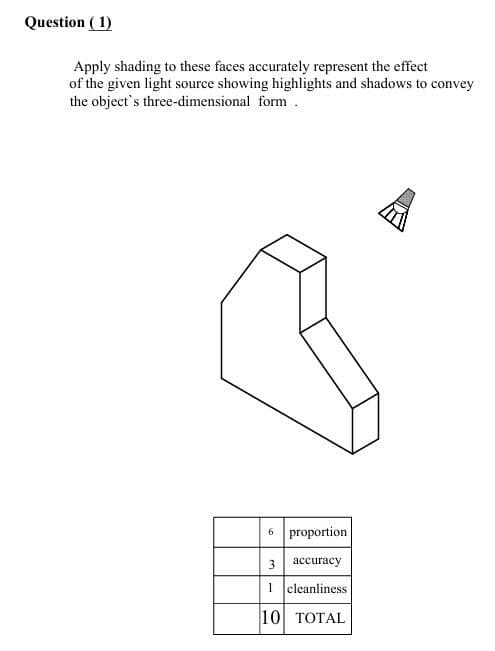

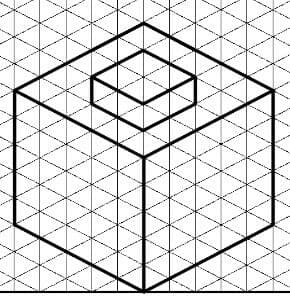

Complete the isometric drawing shown by extruding 4 unites in the arrow direction.

What visual element is essential for conveying depth and dimension in a drawing?

Which material property affects how light passes through an object, making it appear see-through?

How does “color temperature” of light affect a scene?

Which tool is recommended for creating soft transitions and blending pencil shading?

Which traditional shading technique uses small dots to create texture and depth?

Which pencil would be BEST for creating very dark, rich shadows in a texture drawing?

Which lighting setup uses three sources: key light, fill light, and backlight?

Which operation would you use to create a symmetrical object like a vase?

What is the type of paper to draw an isometric by

A cube has how many edges?


In 3D CAD, which dimensions are represented?

In 2D CAD, which dimensions are represented?

A cube has how many vertices?

Match the 2D CAD descriptions with the corresponding 3D CAD description ,
compare theme in terms , APPLICATION , VISIALIZATION and DIMENTIONS .
Which type of 3D model represents only the lines and vertices, without any surfaces?

how many faces are there in a cube?

What is the main limitation of 2D CAD drawings?

What is the main purpose of 3D CAD drawings?

What is the key difference between 3D CAD from 2D CAD?

What type of 3D model includes information about volume, mass, and surface area?

Which type of 3D model is best for automotive design where is surface style important?


What does the Extrusion operation do in 3D modeling?

What angle is used in a full Revolution to create a complete 3D object?

What angle is used in the revolution of the figure shown?

What angle is used in the revolution of the figure shown?

What should you use to create highlights on a hand-drawn object?

What is the main goal of “realistic visualization” in CAD?
