4 SAR Electrical 1

Quiz by ahmed

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measure skills
from any curriculum

Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
20 questions
Show answers
  • Q1

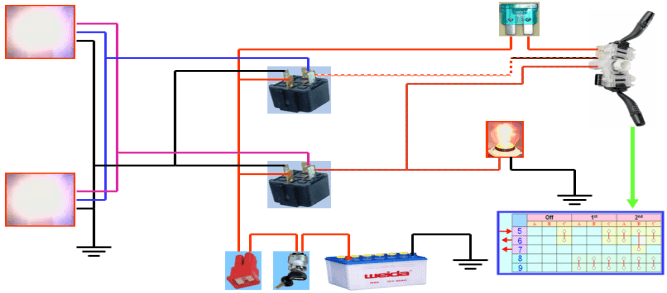

    What is the electrical circuit shows in the figure?
    Question Image
    Back-up light circuit.
    Headlight circuit.
    Clearance and tail lights circuit
    Stop light circuit.
    30s
  • Q2
    Which electrical element protects the circuit from excessive current?
    Switch
    Fuse
    Resistor
    Flasher
    30s
  • Q3
    In the figure shown, If one light burns out, the other lamps: will
    Question Image
    not be affected
    get brighter
    Will go out
    get dimmer
    30s
  • Q4
    The gauge (X) shown in the figure is:
    Question Image
    Speedometer
    Clock
    Voltmeter
    Tachometer
    30s
  • Q5
    The electrical symbol shown in the figure refer to:
    Question Image
    Zener diode
    Light Emitting diode
    Photo diode
    Rectifier Diode
    30s
  • Q6
    What is the electrical circuit shown in the figure?
    Question Image
    Clearance and tail lights circuit
    Stop light circuit
    Back-up light circuit
    Headlight circuit
    30s
  • Q7
    The electrical element shown in the figure is:
    Question Image
    Fuse
    Seesaw switch
    Ignition switch
    Relay
    30s
  • Q8
    The stoplight switch is normally mounted on the:
    Brake pedal arm
    Instrument panel
    Transmission
    Engine block
    30s
  • Q9
    The bulbs shown in the figure are connected in:
    Question Image
    Compound connection
    Parallel connection
    Series connection
    Star connection
    30s
  • Q10
    The type of bulb shown in the figure is:
    Question Image
    Light emitting diode bulb
    Quartz-halogen Bulb
    Ordinary bulb
    Xenon bulb
    30s
  • Q11
    The electronic element shown in the figure is:
    Question Image
    Switch
    Resistor
    Transistor
    Diode
    30s
  • Q12
    What is the electrical circuit shown in the figure?
    Question Image
    Clearance and tail lights circuit
    Headlight circuit
    Stop light circuit
    Turn signal light circuit
    30s
  • Q13
    Figure shows two symbols represent, which two devices?
    Question Image
    Variable resistor and lamp
    Fixed resistor and lamp
    Lamp and motor
    Switch and relay
    30s
  • Q14
    The electrical circuit shows in the figure is?
    Question Image
    Back-up light circuit
    Horn circuit
    Electric cooling fan circuit
    Stop light circuit
    30s
  • Q15
    The device shown in the figure is?
    Question Image
    Digital Multi-meter
    Analogue Multimeter
    Tachometer
    Speedometer
    30s
