8.7.C Use Pythagorean Theorem to solve problems

Quiz by Texas Education Agency

Grade 8
Mathematics
Texas Essential Knowledge and Skills (TEKS)

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measures 1 skill from
Grade 8
Mathematics
Texas Essential Knowledge and Skills (TEKS)

8.7.C: Expressions, Equations and Relationships

Track each student's skills and progress in your Mastery dashboards

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • view complete results in the Gradebook and Mastery Dashboards
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet
5 questions
Show answers
  • Q1
    Which measurements could not represent the side lengths of a right triangle?
    6 cm, 8 cm, 10 cm
    4 cm, 6 cm, 10 cm
    10 cm, 24 cm, 26 cm
    12 cm, 35 cm, 37 cm
    60s
    8.7.C: Expressions, Equations and Relationships
    Edit
    Delete
  • Q2

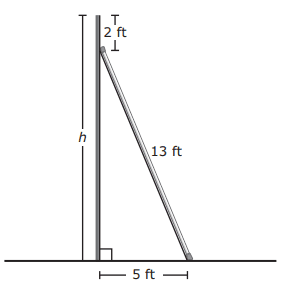

    The set designer for a play painted some background scenery on a large piece of plywood. He used a 13-foot-long pole to hold the piece of plywood upright, as shown in the diagram below. What is h, the total height in feet of the piece of plywood? Be sure to use the correct place value.
    Question Image
    Users enter free text
    Type an Answer
    60s
    8.7.C: Expressions, Equations and Relationships
    Edit
    Delete
  • Q3

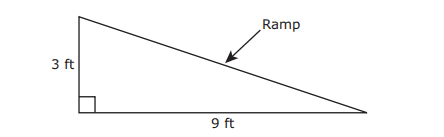

    The diagram below shows the side view of a ramp used to help load and unload a moving van. Which measurement is closest to the length of the ramp in feet?
    Question Image
    10.5 ft
    9.5 ft
    8.5 ft
    13.5 ft
    60s
    8.7.C: Expressions, Equations and Relationships
    Edit
    Delete
  • Q4

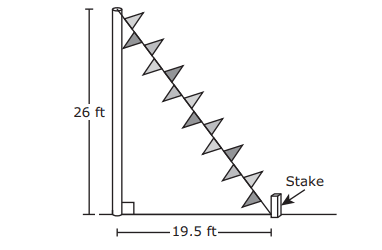

    The manager of a car dealership wants to attach a rope with flags to the top of a pole and to a stake in the ground, as shown in the diagram. Based on the diagram, what is the distance in feet from the top of the pole to the bottom of the stake? Be sure to use the correct place value.
    Question Image
    Users enter free text
    Type an Answer
    60s
    8.7.C: Expressions, Equations and Relationships
    Edit
    Delete
  • Q5
    A right triangle and two of its side lengths are shown in the diagram. Which measurement is closest to the value of x in centimeters?
    Question Image
    27 cm
    51 cm
    40.8 cm
    37.1 cm
    60s
    8.7.C: Expressions, Equations and Relationships
    Edit
    Delete

Teachers give this quiz to your class
