AutoCAD Quiz 1
Quiz by Robin Bonner
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet

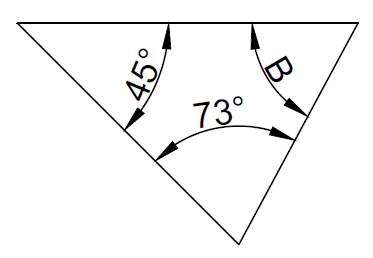

- Q 1/10Score 0What is the value of the angle B in the following figure?2962
10 questions
Show answers
- Q1What is the value of the angle B in the following figure?6230s
- Q2To draw the 85 unit line shown on the following image in AutoCAD, what command line do we need?85<-4530s
- Q3On the trigonometric circle, 180 degrees correspond to-180 degrees30s
- Q4When was the first version of AutoCAD released?198230s
- Q5If A has x and y coordinates equal to (10,50) and B equal to (25,50), What is the length of AB?1530s
- Q6What does 2D means in the context of Computer Aided Design?Two dimensions30s
- Q7Can I draw in centimeter in AutoCAD?Yes30s
- Q8One lap on the trigonometric circle is36030s
- Q9If you were asked to draw the following image in AutoCAD, do you have all information to do it?Yes30s
- Q10What is the primary file’s type used by AutoCAD?DWG30s
