Automotive Knowledge Assessment 17

Quiz by ahmed

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
29 questions
Show answers
  • Q1

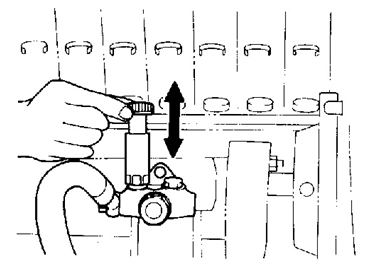

    The name of the test as shown in the figure is:
    Question Image
    Suction Test
    Injection Pump Test
    Injection Pressure Test
    Feed pump test
    30s
  • Q2

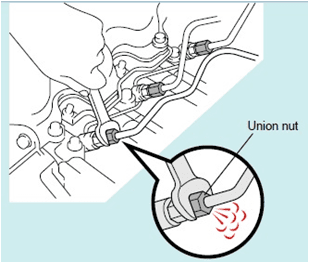

    Identify the process as shown in the figure.
    Question Image
    Bleeding air at low pressure pipe
    Bleeding air at high pressure pipe
    Tightening of union nut
    Loosening union nut
    30s
  • Q3

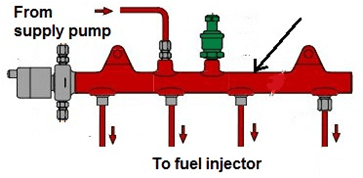

    Store pressurized fuel by supply pump and distribute to each cylinder injector is called:
    Question Image
    Fuel tank
    Rail
    High pressure line
    Feed pump
    30s
  • Q4
    Separate water from fuel before entering to injection pump is called:
    Question Image
    Injector
    Sedimentary
    None of the above
    Fuel Filter
    30s
  • Q5

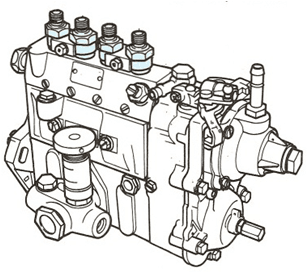

    Delivers high pressure fuel to the injectors at the right time is:
    Question Image
    Feed pump
    Hydraulic pump
    Priming pump
    Injection pump
    30s
  • Q6
    Injects the fuel into cylinder is:
    Question Image
    Injector holder
    Plunger
    Nozzle
    None of the above
    30s
  • Q7

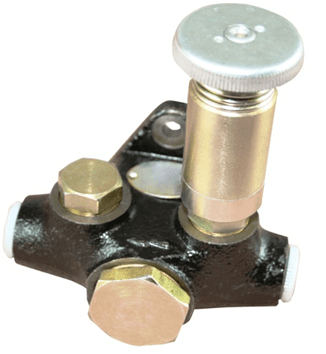

    Draws fuel from the fuel tank and deliver to injection pump is:
    Question Image
    Fuel feed pump
    Hand pump
    None of the above
    Fuel pump
    30s
  • Q8

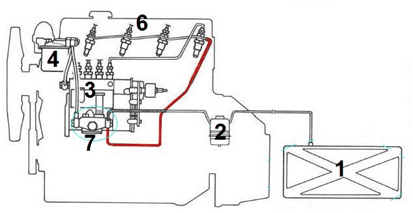

    The type of fuel injection pump system shown in the figure is:
    Question Image
    In-line injection pump system
    Common rail system
    Distributor pump system
    Unit injector system
    30s
  • Q9

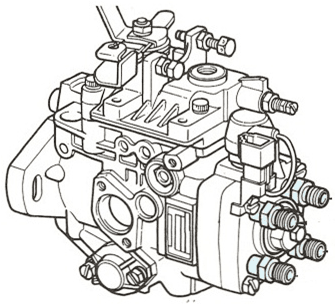

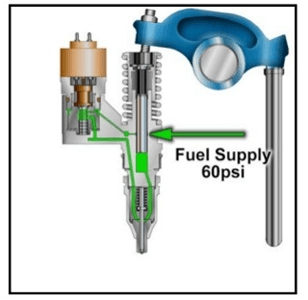

    The type of fuel injection system used this component as shown in the figure is:
    Question Image
    Unit Injector System
    In-line Injection System
    Pumping System
    Distributor pump System
    30s
  • Q10

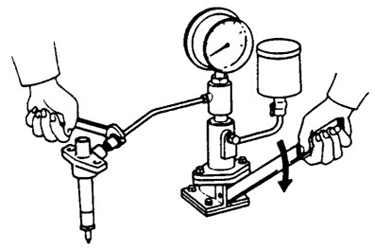

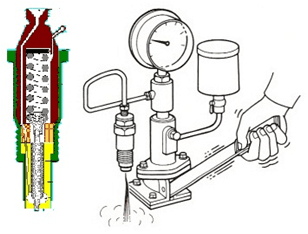

    The fuel injector test which shown in the figure is:
    Question Image
    Leakage test
    Sinking test
    Spray pattern test
    Injection pressure test
    30s
  • Q11

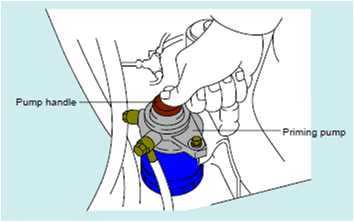

    In feed pump suction test, the fuel must discharge within how many strokes of priming pump?
    Question Image
    35 strokes
    20 strokes
    30 strokes
    25 strokes
    30s
  • Q12
    Inject and spray atomized fuel into combustion chamber is called:
    Question Image
    Nozzle holder seat
    Injection rod
    Fuel injector
    Nozzles Tip
    30s
  • Q13

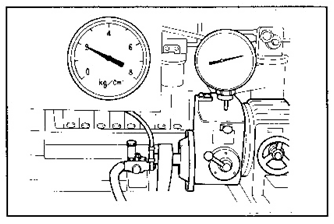

    Identify the name of the test as shown in the figure.
    Question Image
    Feed pump suction test
    Feed pump discharge test
    Injection pump Test
    None of the above
    30s
  • Q14
    Injects atomized fuel into high temperature, high pressure air in the combustion chamber is:
    Question Image
    Unit injector system
    Priming pump system
    Fuel injection system
    None of the above
    30s
  • Q15
    Control engine speed in injection system is called:
    Question Image
    Plunger
    Injector
    None of the above
    Governor
    30s
