Chapter 36 Gaskets and Sealants
Quiz by Matt Lobdell
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
What force causes a head gasket to be drawn downward during engine operation?
Where is a multilayered steel (MLS) gasket most often used in an engine?
A steel or copper wire used in a head gasket around the cylinder is called ________.
A one piece oil pan gasket often uses ________ in the middle to add strength.
Some gaskets use a steel washer around each bolt hole. The purpose of this washer is to ________.
A gasket failure caused by the movement of dissimilar materials is called ________.
Which type of oil seal must NOT have oil applied to it for it to work correctly?
What precautions should be followed when using gaskets?
Which type of sealer is to be used on non-machined surfaces?
Which product requires heat to remove?
Technician A says that gaskets are used to fill a space or gap between two objects to prevent leakage from occurring. Technician B says that there are many types of gaskets including cylinder head gaskets, valve cover gaskets, and timing cover gaskets. Who is right?
RTV (room temperature vulcanized) cures under which of these conditions?
Which of these head gaskets is most commonly used on engine equipped with an aluminum cylinder head on a cast iron block?
What could occur if thread sealant was not installed on the threads of a head bolt being installed in a wet hole in the cylinder block?

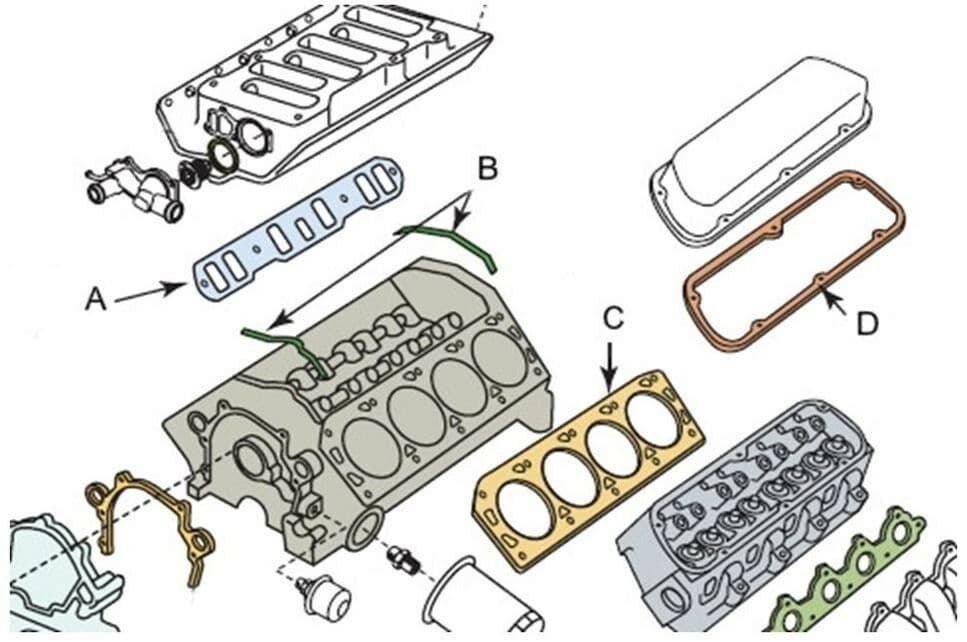

Which of these is the head gasket?

Use of the wrong type of RTV silicone sealer could damage the ________.
Old style cork cover gaskets have been replaced by ________.
Most late model vehicles will use ________ as an intake manifold gasket.
The pressure in a gasoline engine combustion chamber can be as high as ________.

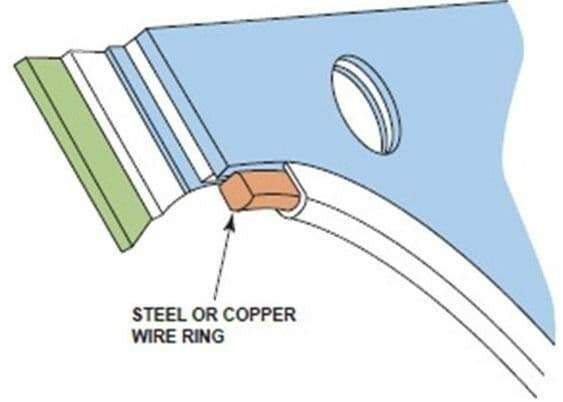

What is the purpose of the wire ring in this picture?
