  • Q1
    What document should be referred to for specific wiring details of domestic heating controls?
    Building Regulations
    Part P
    Manufacturer's instructions
    User Instructions
    30s
    Edit
    Delete
  • Q2
    Which is the most likely supply voltage type and rating used for a central heating circulating pump?
    230V AC
    110V DC
    230V DC
    110V AC
    30s
    Edit
    Delete
  • Q3
    Which of the following would be found on a low voltage central heating wiring system?
    24V DC
    110V AC
    24V AC
    12V DC
    30s
    Edit
    Delete

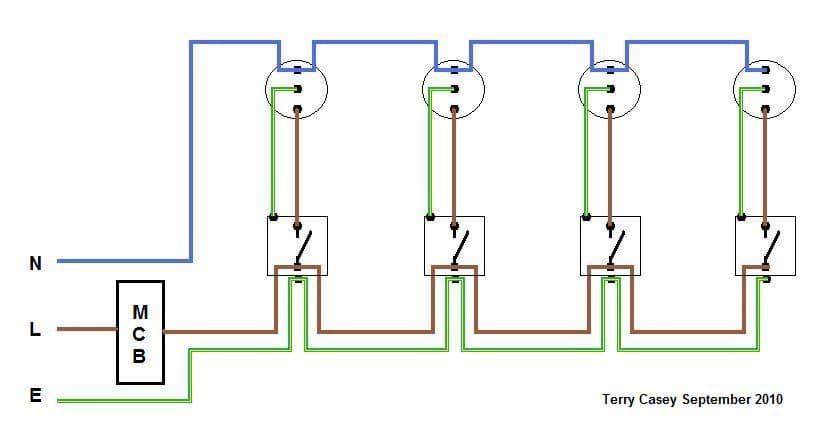

  • Q4
    What type of domestic electrical circuit is shown in the diagram?
    Question Image
    Radial circuit
    Ring main circuit
    Lighting circuit
    Spur circuit
    30s
    Edit
    Delete
  • Q5
    What type of domestic electrical circuit is shown in the diagram?
    Question Image
    Ring main circuit
    Radial circuit
    Spur circuit
    Lighting circuit
    30s
    Edit
    Delete
  • Q6
    Which of the following earth arrangements uses an installation earth electrode as part of the earth fault path?
    TT
    TN-C-S
    TN-C
    TN-S
    30s
    Edit
    Delete

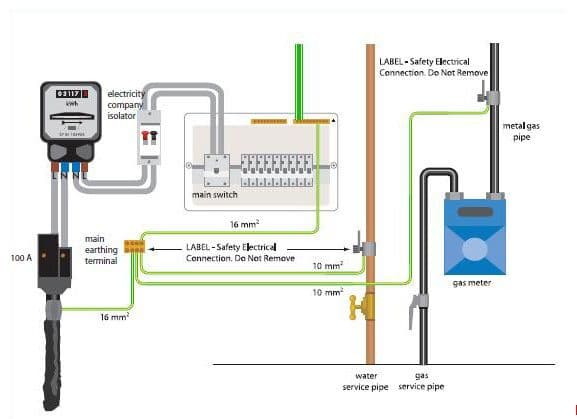

  • Q7
    What is the following earth arrangement?
    Question Image
    TN-C
    TN-C-S
    TN-S
    TT
    30s
    Edit
    Delete

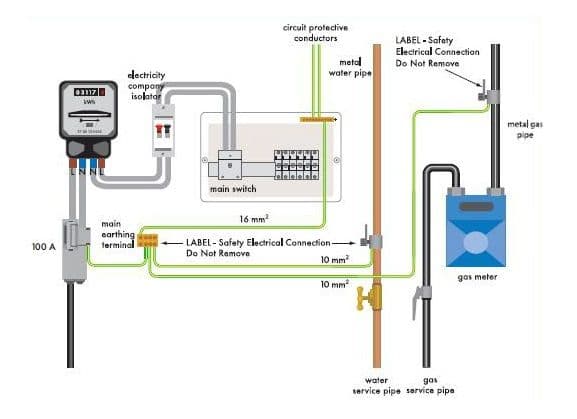

  • Q8
    What is the following earth arrangement?
    Question Image
    TN-C-S
    TN-S
    TT
    TN-S
    30s
    Edit
    Delete
  • Q9
    Which one of the following conductors connects an installation main earthing terminal to the incoming copper mains water pipe?
    Supplementary bonding conductor
    High integrity protective conductor
    Main protective bonding conductor
    Circuit protective conductor
    30s
    Edit
    Delete
  • Q10
    Which one of the following would be used to connect 2 pipes together in a bathroom?
    High integrity protective conductor
    Supplementary bonding conductor
    Circuit protective conductor
    Main protective bonding conductor
    30s
    Edit
    Delete
  • Q11
    Which one of the following components operates under earth fault conditions only?
    RCD
    Circuit breaker
    HBC fuse
    RCBO
    30s
    Edit
    Delete
  • Q12
    Identify the protective device which operates when the system is overloaded?
    Question Image
    RCBO
    RCD
    HBC fuse
    Circuit breaker
    30s
    Edit
    Delete
  • Q13
    What is the component shown in the image?
    Question Image
    Cartridge fuse
    Circuit breaker
    RCD
    RCBO
    30s
    Edit
    Delete
  • Q14
    Out of the following cartridge fuses which would be used to provide overcurrent protection to a 230V domestic central heating circuit with a total load of 600W?
    16A
    6A
    13A
    3A
    30s
    Edit
    Delete

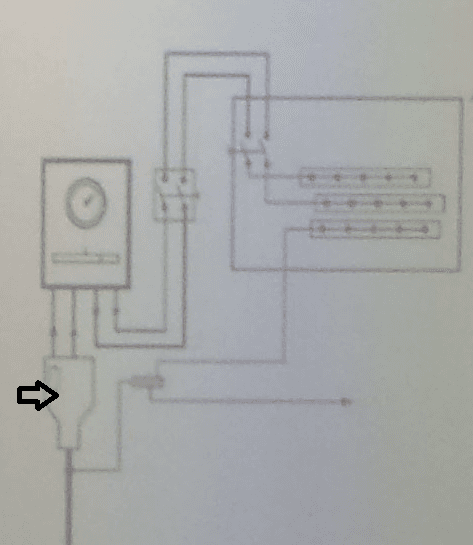

  • Q15
    Identify the marked component in the diagram
    Question Image
    Supplier’s cut out
    Consumer’s main earth terminal
    Consumer’s control unit
    Supplier’s energy meter
    30s
    Edit
    Delete

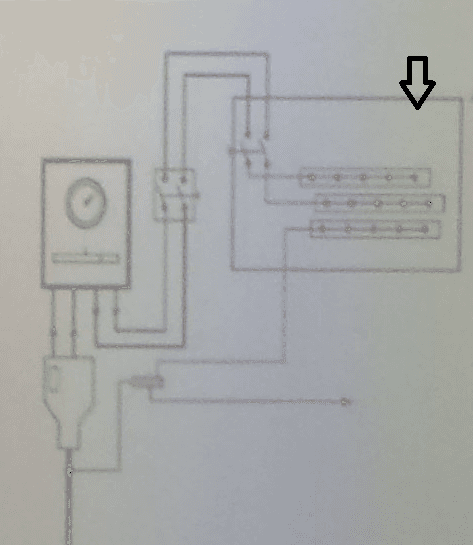

  • Q16
    Identify the marked component in the diagram
    Question Image
    Suppliers meter
    Consumer's control unit
    Supplier's main fuse
    Consumers main earth terminal
    30s
    Edit
    Delete

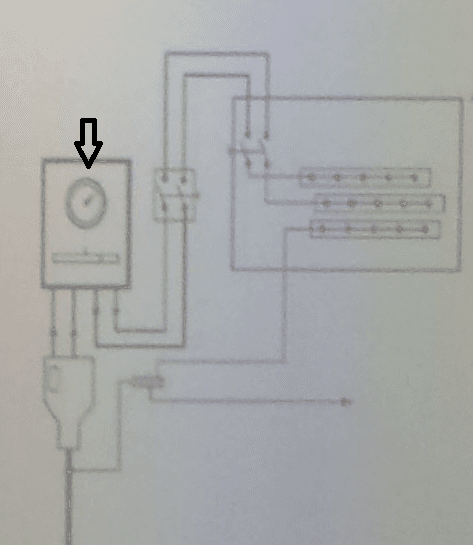

  • Q17
    Identify the marked component in the diagram
    Question Image
    Suppliers energy meter
    Consumers control unit
    Consumers main earth terminal
    Suppliers cut out
    30s
    Edit
    Delete
  • Q18
    Which one of the following protection methods applies when installing circuits using single core cable?
    The cables must be protected by a RCD
    The cables must be enclosed within conduit
    The cables must be buried within the wall
    The cables must be clipped to the surface
    30s
    Edit
    Delete
  • Q19
    Which one of the following would be most likely to be damaged first in the event a current exceeds its maximum capacity?
    Cable containment
    Cable sheathing
    Cable core
    Cable insulation
    30s
    Edit
    Delete

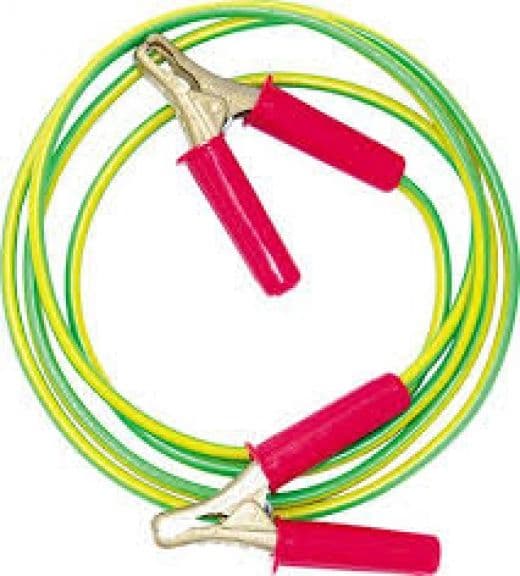

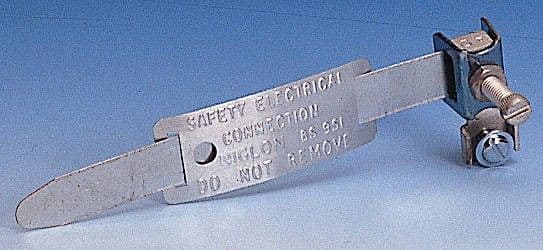

  • Q20
    What is the component shown in the image?
    Question Image
    Terminal strip
    Temporary continuity bonding
    Pillar terminal
    Earth bonding clamp
    30s
    Edit
    Delete
