- Q1
What is one of the most popular types of measuring tool, usually 6 or 12 inches in length?
divider
ruler
triangle
compass
60sTLE_ICTIL7/8MC0d-1 - Q2
What tool is used to measure angles and arcs?
triangle
protractor
ruler
compass
30sTLE_ICTIL7/8MC0d-1 - Q3

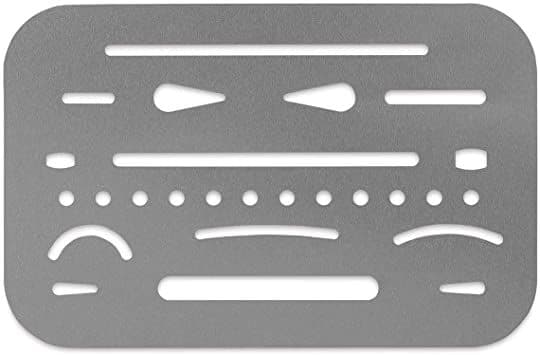

What tool is being shown?
scrambled://erasingshield
120sTLE_ICTIL7/8UT0a-1 - Q4
Match the grade of the pencil to its group
linking://Soft pencil|6B:Medium pencil|HB:Hard Pencil|4H
120sTLE_ICTIL7/8MT0c-2 - Q5
The following instruments can be used to draw horizontal and vertical lines except for one.
ruler
compass
t - square
triangle
30sTLE_ICTIL7/8MC0d-1 - Q6
The following statements are good practices to observe while working, except one.
The needle points of dividers and compasses must be sharp and of equal length.
Always have a clean, dry rag or absorbent paper nearby to wipe your hands.
Pick up the triangle by its tip and tilt the T-square blade upward slightly before moving.
Pull too much the steel tape of a pull-push rule to the coil spring
120sTLE_ICTIL7/8MT0c-2 - Q7
Which of the following statements is a good way of maintaining drafting tools and equipment?
Cut paper using French- curve, T square, or triangles along its working edge
Wipe down all drafting tools with a rag or old towel
Abuse or misuse any piece of drawing instruments
Sharpen the pencil over the drawing or close to any of your equipment
120sTLE_ICTIL7/8MT0c-2 - Q8
Sort the following according to the group of systems of measurement
sorting://Metric system|centimeter,decimeter,milimeter:English system|yard,feet,inches
120sTLE_ICTTD7/8MC0g-2 - Q9

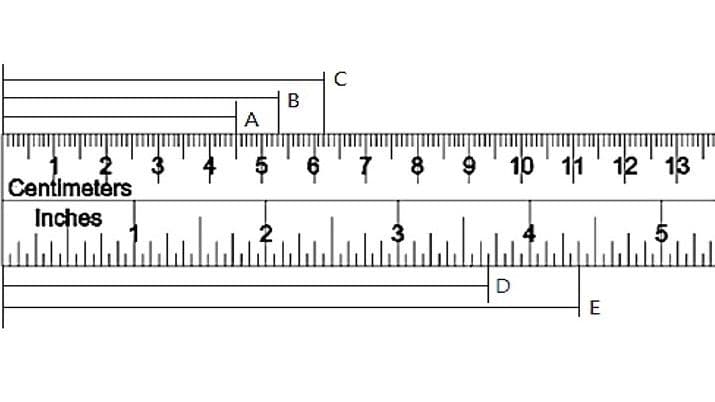

What is the measurement reading of dimension A?
4.6 mm
.45 cm
4.5 cm
.46 cm
30sTLE_ICTIL7/8MC0e-2 - Q10
What is the measurement reading of dimension D?
3 12/16"
3 13/16"
3 14/16"
3 11/16"
120sTLE_ICTIL7/8MC0e-2 - Q11
Convert 8 meters to centimeters
8000 centimeters
800 centimeters
0.8 centimeters
80 centimeters
60sTLE_ICTTD7/8MC0g-2 - Q12
Convert 3 yards to feet
10 feet
7 feet
8 feet
9 feet
30sTLE_ICTTD7/8MC0g-2 - Q13
What form shows proof of receipt of goods or services?
inventory form
delivery receipt form
borrower's form
purchase requisition form
60sTLE_ICTIL7/8MT0b-1 - Q14
Which form contains information about the name, number, purchase information, and cost of goods and displays on a balance sheet?
borrower's form
purchase requisition form
inventory form
delivery form
30sTLE_ICTIL7/8MT0b-1 - Q15
Mr. Gil, a drafting teacher requested triangles and T-squares from the office of Mr. Red, a supply officer, but none of these are available in the school. What form must be prepared to buy those instruments?
delivery form
borrower's form
inventory form
purchase requisition form
120sTLE_ICTIL7/8MT0b-1
