FIRST QUARTER EXAMINATION EIM GRADE 8
Quiz by WILMA P. VIOLETA
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
The blade tip is wedge-shaped and resembles a negative (–) sign. This is used to drive screws with a single slot.
Used for cutting and holding fine wires. This can reach tight space or small opening where other pliers cannot reach and also used in making terminal loops of copper wires.
This has a cross tip resembling a positive(+) sign. It is used to drive screws with cross slot heads.
This is tool used in driving or pounding as well as in pulling nails.
A tool used for removing insulation of medium sized wires ranging from gauge #10 to gauge #16.
A small drilling machine with a chuck capacity of ¼‖ to 3/8‖. It is used in making holes on metal sheets and concrete walls.
Comes in either Standard or Philips screwdriver with short shank or blade and shorted handle used to turn screws in tight space where standard screwdriver cannot be used.
Used by linemen to remove insulation of wire and cables in low and high voltage transmission lines.
It is a device inserted into a convenience outlet to conduct electric current. A flat cord is attached to it on one end and the other end is connected to a current consuming instrument or appliance.
This is a circuit protective device that automatically blows and cuts the current when an overload or short circuit happens.
It is which is made of multiple strands joined together to make a single wire.
Are electrical materials used as the passage of wires for protection and Insulation.
Are used to attach metallic or non-metallic conduit to the junction or utility boxes.
A device designed to open and close a circuit by nonautomatic means and to open the circuit automatically on a predetermined over current without damage to itself when properly applied with in its rating.
It is an octagonal shaped electrical material where the connections or joints of wires are being done. It is also where the flush type lamp holder is attached.

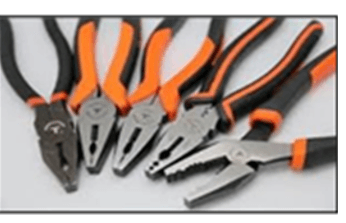

Identify actual electrical tools and materials. Give the complete name

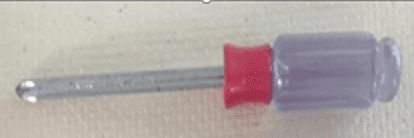

Identify actual electrical tools and materials. Give the complete name
Identify actual electrical tools and materials. Give the complete name
Identify actual electrical tools and materials. Give the complete name
Identify actual electrical tools and materials. Give the complete name
This kind of joint is commonlyused to join two or more conductors inside the junction box.
a. Aerial tap b.Plain tap joint c. Rat Tail d. Knotted tap
This is used where the tap wire is under a considerabletensile stress circuit.
a.Knotted tap b.Plain tap joint c. Aerial tap d. Rat Tail
This is used as a temporary tap.
a. Splicing b. Plain tap joint c. Aerial tap d. Rat Tail
A device inserted into a convenience outlet to conductelectric current.
a. Lamp holder b. male plug c. fuse d. circuit breaker
Devicesthat hold and protect the lamp
a. Lamp holder b. maleplug c. fuse d.circuit breaker
It is an octagonal shapedelectrical material where the connections or joints of wires are being done. Itis also where the flush type lamp holder is attached.
a. junction box b. maleplug c. fuse d. circuit breaker
A Circuit protective devicethat automatically blows and cuts the current when an overload or short circuithappens. a. Lamp holder b. male plug c. fuse d circuit breaker
A device designed to open and close a circuit by nonautomatic means and to open the circuit automatically on a predetermined over current without damage to itself when properly applied within its rating. a. Lamp holder b. male plug c. fuse d. circuit breaker
This has a cross tip resembling a positive (+) sign. This is used to drive screws with cross slot heads. a.Wire stripper b. knife c. Philips screwdriver d. flat screwdriver
Used by linemen to remove the insulation of wire and cables in low and high voltage transmission lines. a.Wire stripper b. electrician’s knife c. Philips screwdriver d. screw
It is a written instruction to perform workaccording to specified requirements, within specified timeframe and costestimates. a. Inventory form b. requisition form c. job order form d.borrower’s form
An itemized list of current assets such as a list of goods on hand or a catalog of the property of an individual or estate. a. Inventory form b. inventory c. librarian d. liabilities
A form used to request for tools and equipment to be used for a particular job.
a. Inventory form b. requisition form c. job order form d. borrower’s form
A document generated to notify the purchasing department of items it needs to order, their quantity, and the time frame. a. Inventory b. requisition form c. job order form d. borrower’s form
The person who generate the requisition slip form a. Storeroom-personnel b. guard c. driver d. librarian
The raw materials, work-in-process goods and finished goods that are considered to be the portion of a business's assets that are ready or will be ready for sale. a. Inventory form b. inventory c. librarian d. liabilities
The written authority that has given a worker or shop to perform certain work
a. Inventory form b. requisition form c. job order d. borrower’s form
The column in the inventory form where thetotal number of tools or equipment is listed including repairable, condemned,borrowed and missing. a. Quantity b. Condemnable c. repairable d. missing
Which column in the inventory form where the number of tools or equipment that cannot be repaired are indicated. a. Quantity b. condemnable c. repairable d. missing
The column in the inventory form where tools or equipment that is included in the quantity but not included in functional, repairable, condemnable, or borrowed. They are the lost tools or equipment. a. Quantity b. condemnable c. repairable d. missing
What document generated to notify the purchasing department of items it needs to order, their quantity, and the time frame. a. Inventory b. requisition form c. job order form d. borrower’s form
It is a written instruction to perform work according to specified requirements, within specified timeframe and cost estimates. a. inventory form b. requisition form c. job order form d. borrower’s form
Which form used to request for tools and equipment to be used for a particular job. a. Inventory form b. requisition form c. job order form d. borrower’s form
Who is the person generate the requisition slip form. a. store room-personnel b. guard c. driver d. librarian
The column in the inventory form where tools or equipment that is included in the quantity but not included in functional, repairable, condemnable, or borrowed. They are the lost tools or equipment. a. quantity b. condemnable c. repairable d. missing
What instrument used to measure the amount of electrical current intensity in a circuit.
a. Voltmeter b. Ammeter c. Micrometer d.Ohmmeter
A pocket-sized tool used to test the line wire or circuit if there is current in it.
a.Testlight b.Wire gauge c. Ruler d. Pull-push rule
A measuring tool used to measure the length of an object in centimeter and inches.
a.Testlight b.Wire gauge c. Ruler d. Pull-push rule
It is used to measure the diameter of wires/conductors in circular mils. It can measure small and big sizes of wires and cables.
a.Voltmeter b. Ammeter c. Micrometer d. Ohmmeter
It is used to measure the voltage, resistance, and current of a circuit. It connected in parallel or series with the circuit depending on what to measure.
a. Volt-Ohm-Milliammeter b. Ammeter c. Micrometer d. Ohmmeter
