What measuring instrument is used to determine the resistance of a component or an equipment?
The ohmmeter scale can be divided into how many areas?
The statement below is true about multimeter except:
Which part of the tester do you think serves as its input portion?
What instrument is used to measure AC or DC voltage?
Which among the following is the lowest range multiplier in an ohmmeter?
What do you think is the simplest and most popular way of making a foil pattern?
A solution used for dissolving unwanted copper
What phenolic board is used in PCB designing?
Which do you think among the following can be used as container for ferric chloride?
Name the heating device that is used in joining wires and components with the aid of lead.
What is an alloy of lead and tin?
Name the process of applying a small amount of solder onto the joint to be soldered.
What is the process of heating materials or joints to solder and applying solder on to heated joints to ensure permanent connections?
What do you think will happen if the soldering iron used did not reach its required temperature before using it?

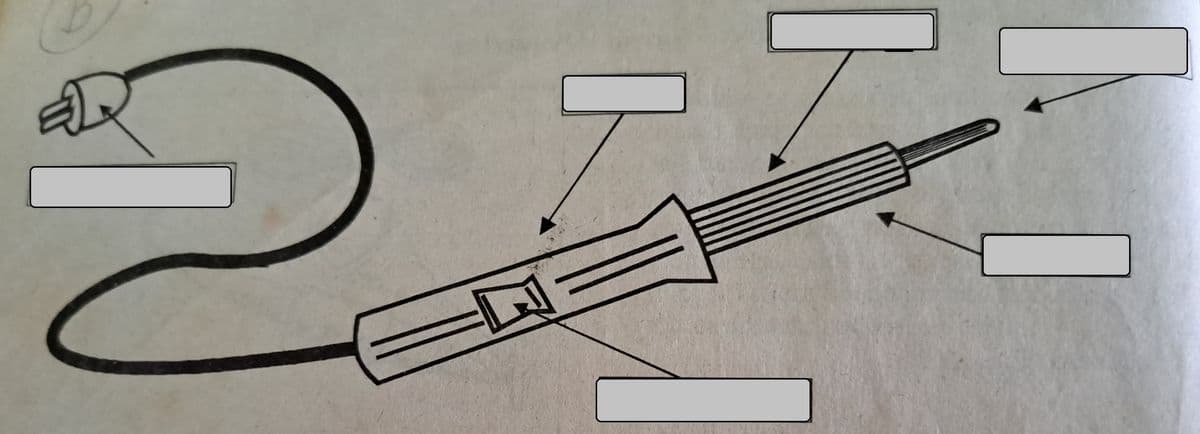

For questions 16-21, refer to the picture below. Label the parts of the soldering iron.
Name the part of the soldering iron.
Name the part of the soldering iron.
Name the part of the soldering iron.
What part of the soldering iron is being asked?
Name the part being asked.
A set of techniques providing standard approach to good housekeeping within the school compound.
Which component of 5S refers to segregating useful from non-useful items?
What is the component of 5S that means to maintain a clean work place?
Which refers to doing things without being told or ordered?

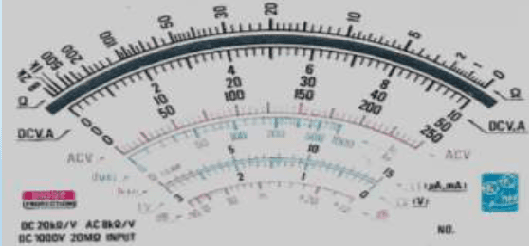

Interpret and compute the readings below.

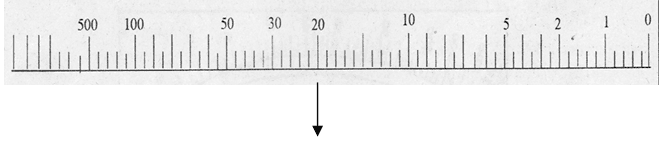

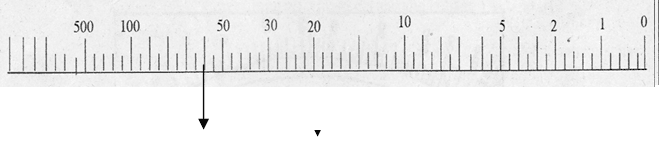

What do you think will be the reading of the ohmmeter below if the range multiplier is at Rx100?

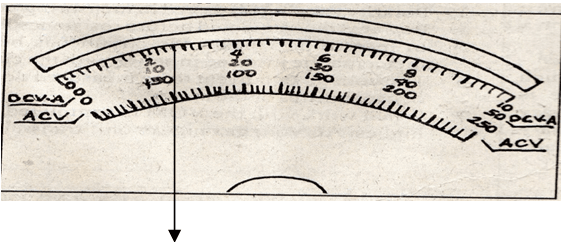

The reading of the voltmeter will be ______________ if the DCV is at 1000v range.

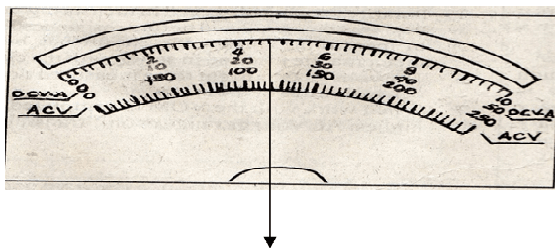

Interpret the voltmeter below. (ACV at 250v range)

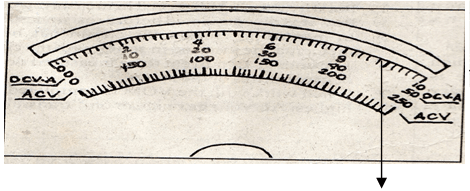

If the range is at 50v in ACV, the reading of the voltmeter below will be _____________.
What should be the first step in PCB designing?
If you were to design a PCB, what will be your last step?
This part of an ohmmeter is called ______________.
Which tool is used to remove soldered wires and components?
How can you identify if the soldering iron is ready for use?

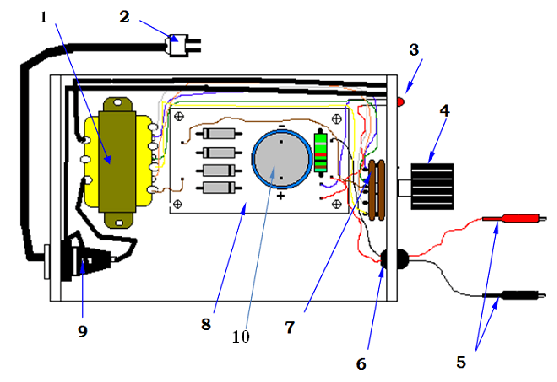

For questions 36-46: Analyze the illustration below. Label the parts of AC/DC power supply.
What is being referred in number 2?
Number 3 in the illustration refers to _____________.
Which of the following represents number 4?
Number 5 refers to _______________.
What does number 6 represent?
Number 7 is referring to _______________.
Number 8 refers to the _____________.
Which of the following is represented by number 9?
Number 10 represents _____________.
For questions 46-50:Â Refer to the following steps in soldering.
A. Hold the soldering iron like a pen, near the base of the handle.
B. Apply a small amount of solder onto the joint.
C. Remove the solder, then the soldering iron, while keeping the joint in still position.
D. Touch the soldering iron onto the joint to be soldered.
E. Inspect the joint closely. It should look shiny.
What do you think should be the first step in soldering?
The 3rd step should be letter ________.
In soldering, what should be the 2nd step?
The last step in soldering is letter _______.
The 4th step in soldering is _________.
