ICND1 Book2 Review

Quiz by Eric Jackson

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measure skills
from any curriculum

Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
56 questions
Show answers
  • Q1

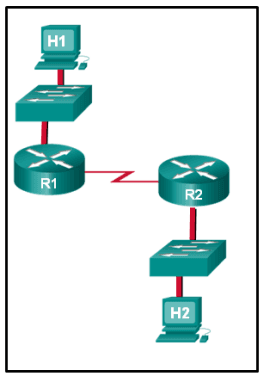

    Refer to the exhibit. Assuming that the routing tables are up to date and no ARP messages are needed, after a packet leaves H1, how many times is the L2 header rewritten in the path to H2?
    Question Image
    4
    2
    5
    3
    120s
  • Q2
    Refer to the exhibit. Which highlighted value represents a specific destination network in the routing table?
    Question Image
    172.16.100.64
    110
    0.0.0.0
    172.16.100.2
    120s
  • Q3
    Which type of static route is configured with a greater administrative distance to provide a backup route to a route learned from a dynamic routing protocol?
    default static route
    summary static route
    standard static route
    floating static route
    60s
  • Q4
    Refer to the exhibit. Which route was configured as a static route to a specific network using the next-hop address?
    Question Image
    S 192.168.2.0/24 [1/0] via 172.16.2.2
    S 192.168.2.0/24 is directly connected, Serial 0/0/0
    S 0.0.0.0/0 [1/0] via 172.16.2.2
    C 172.16.2.0/24 is directly connected, Serial0/0/0
    60s
  • Q5
    What network prefix and prefix-length combination is used to create a default static route that will match any IPv6 destination?
    ::1/64
    FFFF::/128
    ::/128
    ::/0
    60s
  • Q6
    A router has used the OSPF protocol to learn a route to the 172.16.32.0/19 network. Which command will implement a backup floating static route to this network?
    ip route 172.16.32.0 255.255.224.0 S0/0/0 200
    ip route 172.16.0.0 255.255.224.0 S0/0/0 100
    ip route 172.16.0.0 255.255.240.0 S0/0/0 200
    ip route 172.16.32.0 255.255.0.0 S0/0/0 100
    60s
  • Q7
    Refer to the exhibit. Currently router R1 uses an EIGRP route learned from Branch2 to reach the 10.10.0.0/16 network. Which floating static route would create a backup route to the 10.10.0.0/16 network in the event that the link between R1 and Branch2 goes down?
    Question Image
    ip route 10.10.0.0 255.255.0.0 209.165.200.225 100
    ip route 10.10.0.0 255.255.0.0 Serial 0/0/0 100
    ip route 10.10.0.0 255.255.0.0 209.165.200.226 100
    ip route 10.10.0.0 255.255.0.0 209.165.200.225 50
    60s
  • Q8
    Which statement describes a route that has been learned dynamically?
    It is identified by the prefix C in the routing table.
    It is unaffected by changes in the topology of the network.
    It has an administrative distance of 1.
    It is automatically updated and maintained by routing protocols.
    60s
  • Q9
    Compared with dynamic routes, what is an advantage of using static routes on a router?
    They improve netw​ork security.
    They automatically switch the path to the destination network when the topology changes.
    They take less time to converge when the network topology changes.
    They improve the efficiency of discovering neighboring networks.
    60s
  • Q10
    Compared with dynamic routes, what is an advantage of using static routes on a router?
    They take less time to converge when the network topology changes.
    They use fewer router resources.
    They automatically switch the path to the destination network when the topology changes.
    They improve the efficiency of discovering neighboring networks.
    60s
  • Q11
    A network administrator adds the default-information originate command to the configuration of a router that uses RIP as the routing protocol. What will result from adding this command?
    The router will propagate a static default route in its RIP updates, if one is present.
    The router will only forward packets that originate on directly connected networks.
    The router will be reset to the default factory information.
    The router will not forward routing information that is learned from other routers.
    60s
  • Q12
    Refer to the exhibit. What is the administrative distance value that indicates the route for R2 to reach the 10.10.0.0/16 network?
    Question Image
    20512256
    1
    0
    90
    60s
  • Q13
    A network administrator reviews the routing table on the router and sees a route to the destination network 172.16.64.0/18 with a next-hop IP address of 192.168.1.1. What is a description of this route?
    parent route
    supernet route
    default route
    ultimate route
    60s
  • Q14
    A network administrator reviews the routing table on the router and sees a route to the destination network 172.16.64.0/18 with a next-hop IP address of 192.168.1.1. What is a description of this route?
    parent route
    supernet route
    default route
    level 2 child route
    60s
  • Q15
    Which factor is important when deciding which interior gateway routing protocol to use?
    campus backbone architecture
    ISP selection
    scalability
    the autonomous system that is used
    60s
