Interpreting I–V graphs
Quiz by Oak National Academy: GCSE Combined Science OCR Foundation
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
- Q 1/6Score 0The characteristics of which component are shown by this I-V graph?29a diodea fusea resistora filament lamp
6 questions
Show answers
- Q1The characteristics of which component are shown by this I-V graph?a diodea fusea resistora filament lamp30s

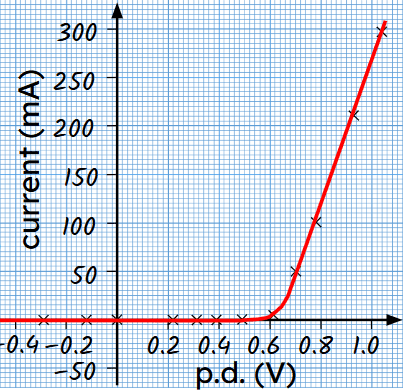

- Q2The characteristics of a diode are shown by this I-V graph. What is its threshold voltage?0.6 V1.02 V0.0 V0.7 V30s
- Q3Which component has a current that increases as the p.d. across it increases, but at higher p.d.s the current does not increase as much as expected?a filament lampa diodea buzzera resistor30s
- Q4Which component has an I-V graph that shows the current is directly proportional to the p.d. across it?a light emitting diodea diodea filament lampa resistor30s
- Q5What is the most appropriate fuse rating for a device that normally uses a current of 9 A?3 A5 A13 A30s
- Q6What happens inside a metal wire with a bigger current through it?Users sort answers between categoriesSorting30s
