Know the components used in domestic hot water systems
Quiz by Ricky Fleet
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
- Q 1/38Score 0What is the component shown?29Under sink water heaterElectric showerMultipoint water heaterMixer shower
38 questions
Show answers

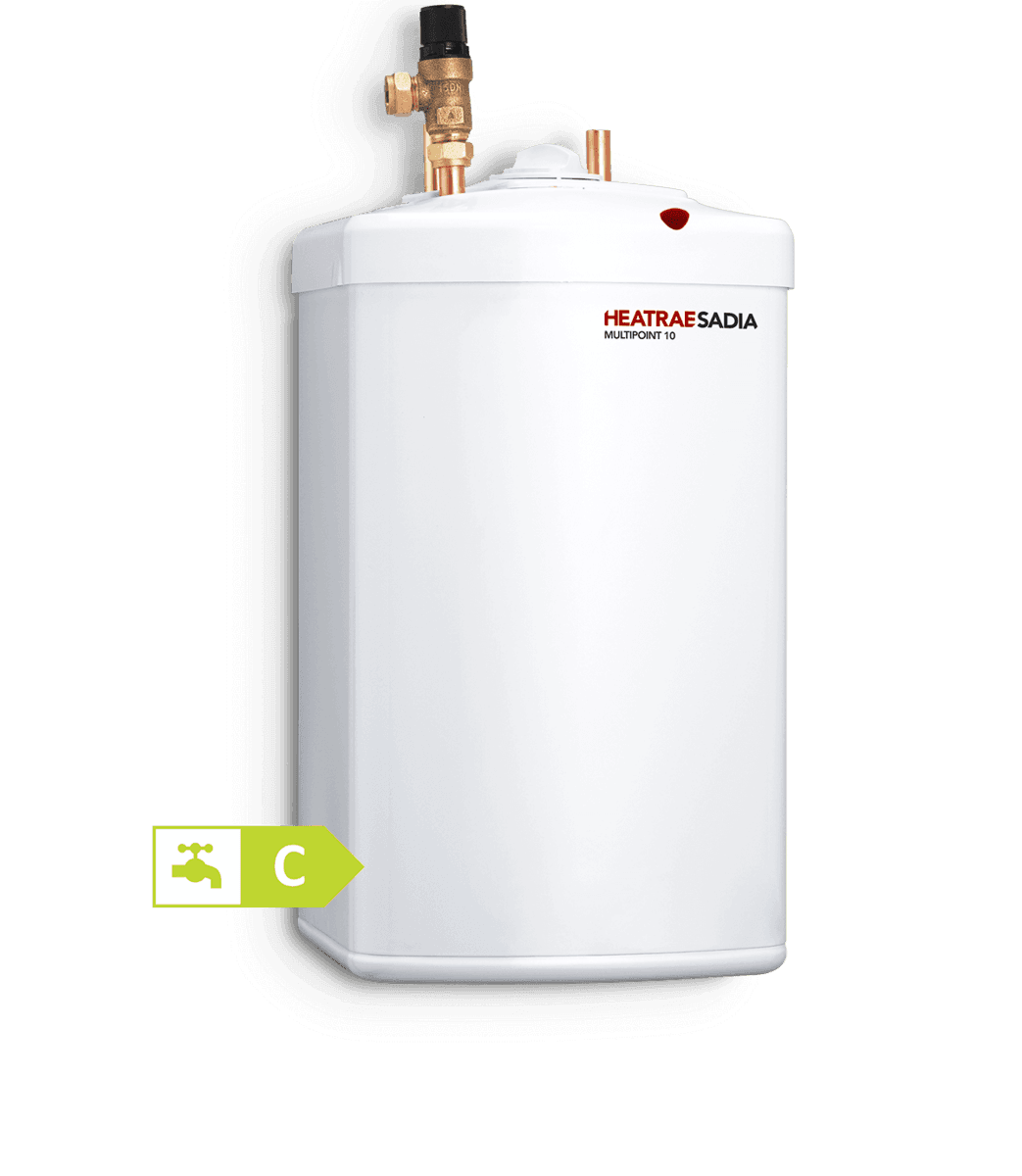

- Q1What is the component shown?Under sink water heaterElectric showerMultipoint water heaterMixer shower30s

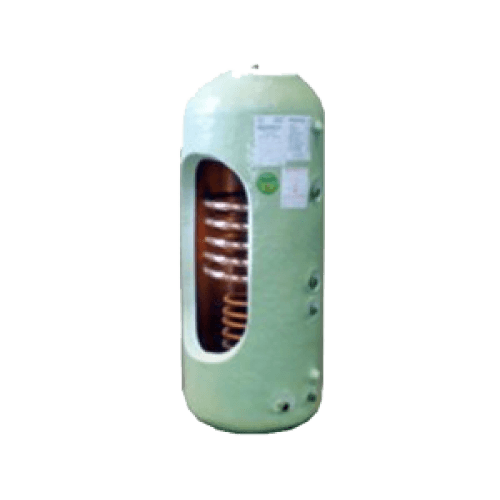

- Q2What is the component shown?Electric showerUnvented multi coil cylinderUnder sink unvented multipoint water heaterOpen vented indirect cylinder30s
- Q3What is the component shown?Combination open vented cylinderUnvented indirect cylinderUnvented multi coil cylinderOpen vented indirect cylinder30s
- Q4What is the component shown?Combination cylinderDouble feed indirect cylinderSingle feed primatic cylinderUnvented indirect cylinder30s
- Q5What is the component shown?Primatic cylinderHigh recovery cylinderTwin coil cylinderDirect cylinder30s
- Q6Where would you find the cylinder coil shown?Annulus heat exchanger cylinderHigh recovery cylinderPrimatic cylinderUnder sink water heater30s
- Q7What is the component shown?Double feed indirect cylinderSingle feed direct cylinderSingle feed primatic cylinderDouble feed twin coil cylinder30s
- Q8What is the component shown?High recovery coilExtension heaterChrome compression capImmersion heater30s
- Q9What cable must be used on immersion heaters?SWA armoured cableHeat resistant flexPVC twin and earthSpecialized earth core30s
- Q10What must immersion heaters be fitted with?Non resetting thermostatTemperature gaugePressure gaugeSelf resetting thermostat30s
- Q11A hot water storage cylinder which returns stored water to a boiler for reheating is aPrimatic cylinderIndirect storage cylinderDirect storage cylinderDouble feed cylinder30s
- Q12An indirect storage vessel separates primary water from secondary by aCast iron heat exchangerCoil or annulusExpansion vesselImmersion heater30s
- Q13To prevent electrolytic corrosion taking place in a system, where can the magnesium rod be placed?The circulatorThe hot water cylinderThe cold water storage cisternThe open vent30s
- Q14Which of the following appliances is most likely to offer the customer low pressure at a hot water outlet?Direct cylinderIndirect cylinderCombination boilerCombination unit30s
- Q15What is the item shown?Pressure/temperature relief valveDouble check valveStop valveBlending valve30s
