Manual gearbox

Quiz by ahmed

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measure skills
from any curriculum

Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
50 questions
Show answers
  • Q1

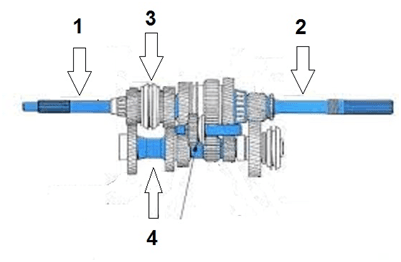

    Part No. 1 on the figure shown is called :
    Question Image
    Counter shaft
    Synchronizer
    Input shaft
    Output shaft
    30s
  • Q2
    When a gear box has four forward speeds and one reverse speed, it is said to be a :
    4-speed gear box
    6-speed gear box
    5-speed gear box
    3-speed gear box
    30s
  • Q3
    Which of the following is not a type of gearbox?
    Sliding mesh gearbox
    Linear mesh gearbox.
    Synchromesh gearbox
    Constant mesh gearbox
    30s
  • Q4
    Which of the following is a symptom of a worn synchronizer-bulking ring?
    Gear clash heard while shifting into gear.
    The transmission jumps out of gear.
    The transmission whines while accelerating
    The transmission is difficult to shift out of gear
    30s
  • Q5
    Part No. 1 on the figure shown is called:
    Question Image
    Selector rod
    Selector fork
    Interlocking device
    Locking device
    30s
  • Q6
    The purpose of the device shown in the figure is
    Question Image
    Reduce shifting shocks
    To prevent selected shifted gear to jump
    To synchronize between driving and driven gear before meshing
    To prevent two gears engagement at the same time
    30s
  • Q7
    The purpose of the shown mechanism is to:
    Question Image
    Reduce shifting shocks
    Prevent or avoid selected shifted gear to jump
    To prevent two gears engagement at the same time
    Synchronize between drive and driven gears before meshing
    30s
  • Q8
    The purpose of the shown mechanism is to:
    Question Image
    Reduce shifting shocks
    Synchronize between drive and driven gears before meshing
    Prevent or avoid to engagement at the same time
    Prevent or avoid selected shifted gear to jump
    30s
  • Q9
    The power flow shown on the following gearbox is the :
    Question Image
    First gear
    Reverse gear
    Second gear
    Fifth (overdrive) gear
    30s
  • Q10
    A five speed manual transmission is very difficult to shift into 3rd and 4th gear only. Which of the following could be the cause?
    Cracked or loose shift forks
    The clutch is not fully releasing
    The pilot bushing is seized
    Worn synchronizer-bulking ring
    30s
  • Q11
    The process shown in the figure is:
    Question Image
    Inspecting needle bearing
    Checking shaft for bending
    Measuring shaft splines for wear
    Measuring gear end play
    30s
  • Q12
    Which lubricant is suitable to be used in a manual transmission?
    SAE 10
    SAE 20
    SAE 90.
    SAE 40
    30s
  • Q13
    Shown figure called
    Question Image
    Secondary shaft
    Lay or counter shaft
    Main shaft
    Primary shaft
    30s
  • Q14
    Letter (C) at figure shown is called
    Question Image
    Main or output shaft
    Reverse idler shaft
    primary or shaft
    Lay cluster shaft
    30s
  • Q15
    Letter (A) at figure shown is called
    Question Image
    primary or input shaft
    Lay cluster shaft
    Reverse idler shaft
    Main shaft
    30s
