MCQ 2: MEASUREMENT,SPEED, DENSITY, PRESSURE

Quiz by Monsur

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measure skills
from any curriculum

Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
19 questions
Show answers
  • Q1

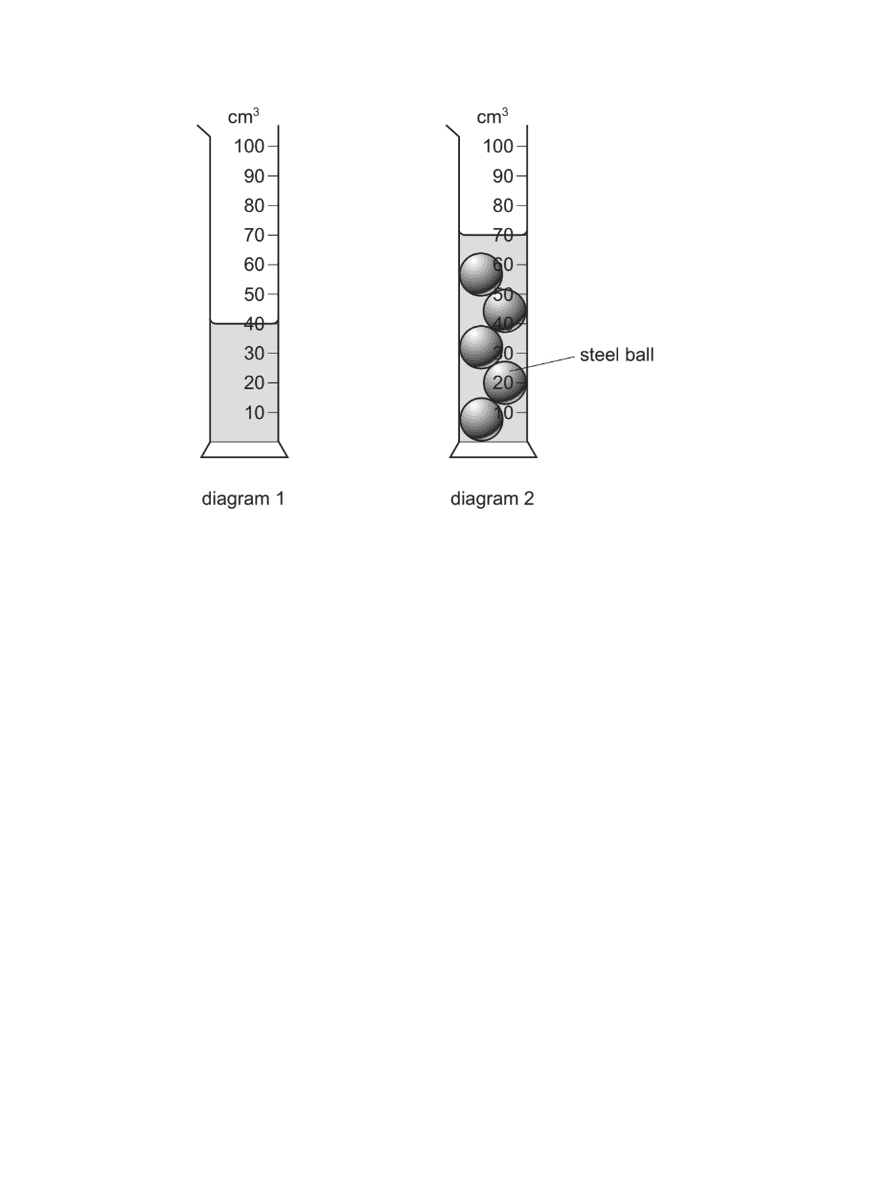

    Diagram 1 shows a measuring cylinder containing water. Five identical steel balls are now lowered into the measuring cylinder. Diagram 2 shows the new water level in the cylinder. What is the volume of each steel ball?
    Question Image
    70
    14
    30
    6
    30s
  • Q2
    The graph shows how the speed of a car changes with time. Between which two times is the car stationary?
    Question Image
    W and X
    V and W
    U and V
    X and Y
    30s
  • Q3
    A man stands by a railway track. A train travelling at 40m/ s takes 2.0 s to pass the man. What is the length of the train?
    80m
    38m
    40m
    20m
    30s
  • Q4
    The mass of an astronaut is 70kg on the Moon. What is the mass of the astronaut on the Earth?
    70kg
    80kg
    700kg
    7kg
    10s
  • Q5
    The weight of an object is found using the balance shown in the diagram. The object is put in the left-hand pan and various weights are put in the right-hand pan. What is the best estimate of the weight of the object?
    Question Image
    0.29N
    0.31N
    0.27N
    0.58N
    45s
  • Q6
    The diagram shows the dimensions of a rectangular block of metal of mass m. Which expression is used to calculate the density of the metal?
    Question Image
    C
    B
    D
    A
    10s
  • Q7
    In which situation is no resultant force needed?
    a car speeding up
    a car changing direction at a steady speed
    a car slowing down
    a car moving in a straight line at a steady speed
    20s
  • Q8
    Which properties of a body can be changed by applying a force to the body?
    mass and motion, but not shape
    mass, motion and shape
    mass and shape, but not motion
    motion and shape, but not mass
    20s
  • Q9
    The list contains three energy resources P, Q and R. P geothermal energy from hot rocks Q nuclear fission in reactors R sunlight on solar panels Which of these resources are renewable?
    P, Q and R
    P and Q only
    P and R only
    Q and R only
    20s
  • Q10
    The diagram shows three different containers J, K and L. Each container contains water of the same depth. Which statement about the pressure of the water on the base of each container is correct?
    Question Image
    The water pressure is greatest in container K.
    The water pressure is greatest in container L.
    The water pressure is greatest in container J.
    The water pressure is the same for all three containers.
    20s
  • Q11
    Which movement will require the greatest amount of work to be done?
    a force of 10N moving an object a distance of 5.0m
    a force of 15N moving an object a distance of 3.0m
    a force of 15N moving an object a distance of 5.0m
    a force of 10N moving an object a distance of 3.0m
    20s
  • Q12
    A water manometer is connected to a gas supply. There is a gas leak and the pressure of the gas supply falls. What happens to the water level at P and what happens to the water level at Q?
    Question Image
    water level at P: rises water level at Q: rises
    water level at P: falls water level at Q: falls
    water level at P: falls water level at Q: rises
    water level at P: rises water level at Q: falls
    20s
  • Q13
    A stopwatch is used to time a runner in a race. The diagrams show the stopwatch at the start and at the end of a lap of the race. How long did the runner take to finish the lap of the race?
    Question Image
    50.00 seconds
    100.10 seconds
    50.10 seconds
    90.00 seconds
    20s
  • Q14
    An aeroplane flies from town X to town Z, stopping for 1 hour at town Y to pick up more passengers. The distances between the towns are shown in the diagram. The total time taken between leaving X and arriving at Z is 3 hours. What is the average speed of the aeroplane in the air?
    Question Image
    B
    A
    C
    D
    20s
  • Q15
    Diagram 1 shows an empty measuring cylinder on a balance. Diagram 2 shows the same measuring cylinder on the balance, but it now contains a liquid. What is the density of the liquid?
    Question Image
    0.5 g / cm3
    5.0 g / cm3
    2.0 g / cm3
    0.2 g / cm3
    20s
