Refraction through a semicircular block (including TIR)
Quiz by Oak National Academy: GCSE Physics OCR Higher
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet

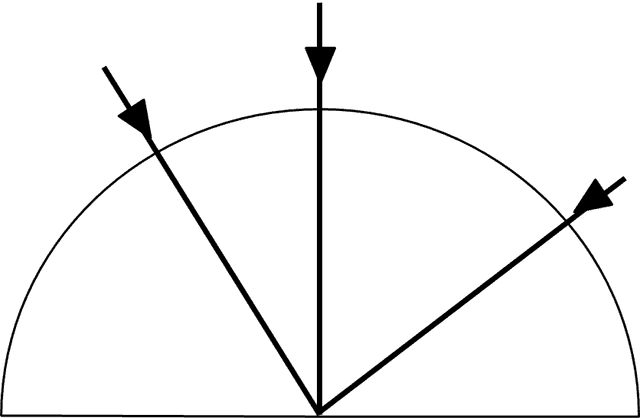

- Q 1/6Score 0The diagram shows three light rays entering a semicircular transparent block. Why don’t the rays change direction when they enter the block?29Users sort answers between categories
6 questions
Show answers
- Q1The diagram shows three light rays entering a semicircular transparent block. Why don’t the rays change direction when they enter the block?Users sort answers between categoriesSorting30s
- Q2A student wants to measure the angle of refraction (using the equipment shown) at a boundary from the block into air when the angle of incidence is 20°. Put the following steps into the correct order.Users link answersLinking30s
- Q3Which of the following ray diagrams shows total internal reflection?30s
- Q4Each diagram shows a possible path of light after it enters a semicircular glass block. In which diagram is the angle of incidence as large as possible without total internal reflection occurring?30s
- Q5Total internal reflection can happen …at a boundary where the ray refracts away from the normal (e.g. glass to air).at any boundary between two media.at a boundary where the ray refracts towards the normal (e.g. air to glass).30s
- Q6For light travelling from water to air, the largest angle of incidence possible without total internal reflection is 49°. Match each angle of incidence to the outcome.Users link answersLinking30s
