Resultant forces and their effects
Quiz by Oak National Academy: GCSE Physics AQA Higher
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet

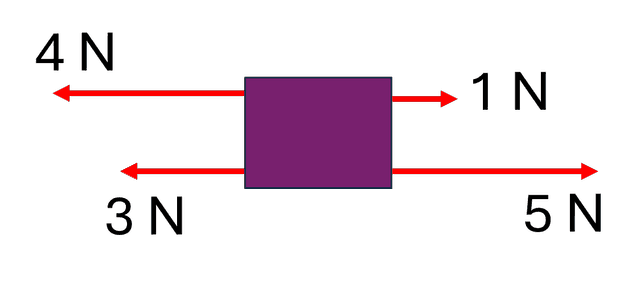

- Q 1/6Score 0The diagram shows four forces acting on an object. What is the magnitude of the resultant force?297 N13 N1 N6 N5 N
6 questions
Show answers
- Q1The diagram shows four forces acting on an object. What is the magnitude of the resultant force?7 N13 N1 N6 N5 N30s
- Q2Which of the following is not caused by a resultant force acting on an object?changing directionstop movingstart movingdecelerating and changing directionmoving at constant velocity30s
- Q3Which of the following statements are included in Newton’s First Law of motion?Users sort answers between categoriesSorting30s
- Q4A ship travels at a constant speed without changing direction. Which of the following statements are correct?Users sort answers between categoriesSorting30s
- Q5A person pushes a stone across a frozen lake. After they let go, the stone slides across the ice, slowing and stopping before it reaches the other side of the lake. Why does the stone slow and stop?The person’s pushing force runs out.The person’s pushing force transfers to the thermal store.There is a resultant force acting in the opposite direction to the motion.Other forces cancel out the person’s pushing force.30s
- Q6Which of the following vans is decelerating?30s
