28 questions
Show answers
  • Q1

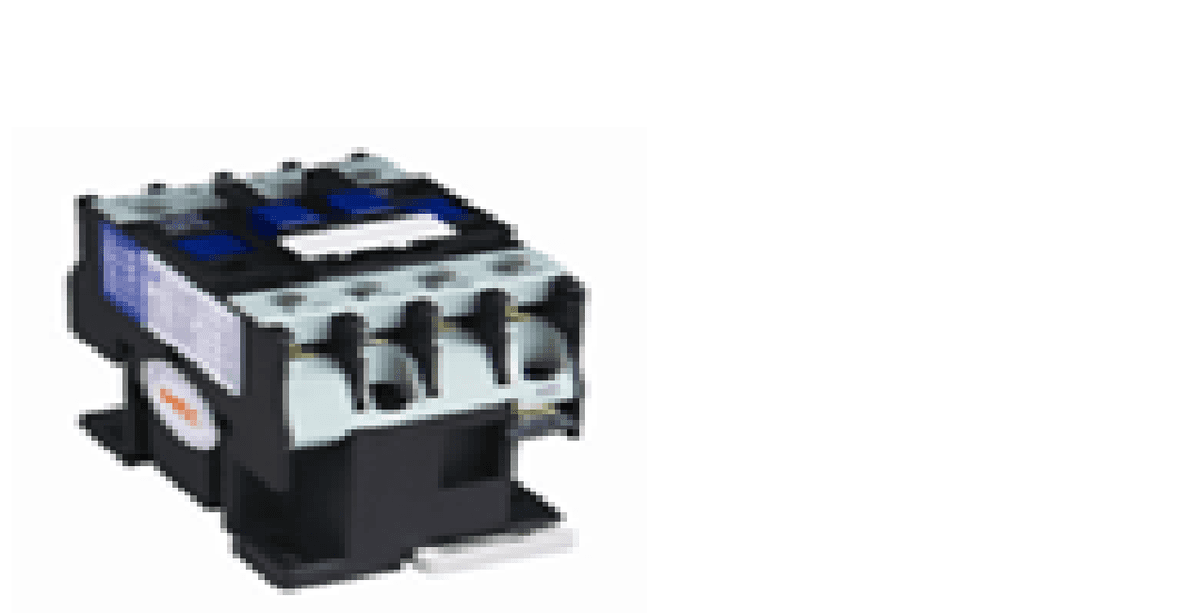

    The terminals (A1-A2) indicates which part of the magnetic contactor?
    Question Image
    Main terminals
    Coil terminals
    Main contacts
    Auxiliary contacts
    30s
  • Q2
    Name the part number (2) in the shown circuit
    Question Image
    Normally open push button switch
    Two way switch
    Auxiliary contact ( normally open )
    Coil
    30s
  • Q3
    What is the main function of transformer in a door lock circuit shown?
    Step down the voltage
    Connecting the circuit
    Magnetize the push button
    Consuming the energy
    30s
  • Q4
    What is the size of EARTH wire used in Ring main circuit according to Bahrain regulation?
    6 mm2 D
    4 mm2
    1.5 mm2
    2.5 mm2
    30s
  • Q5

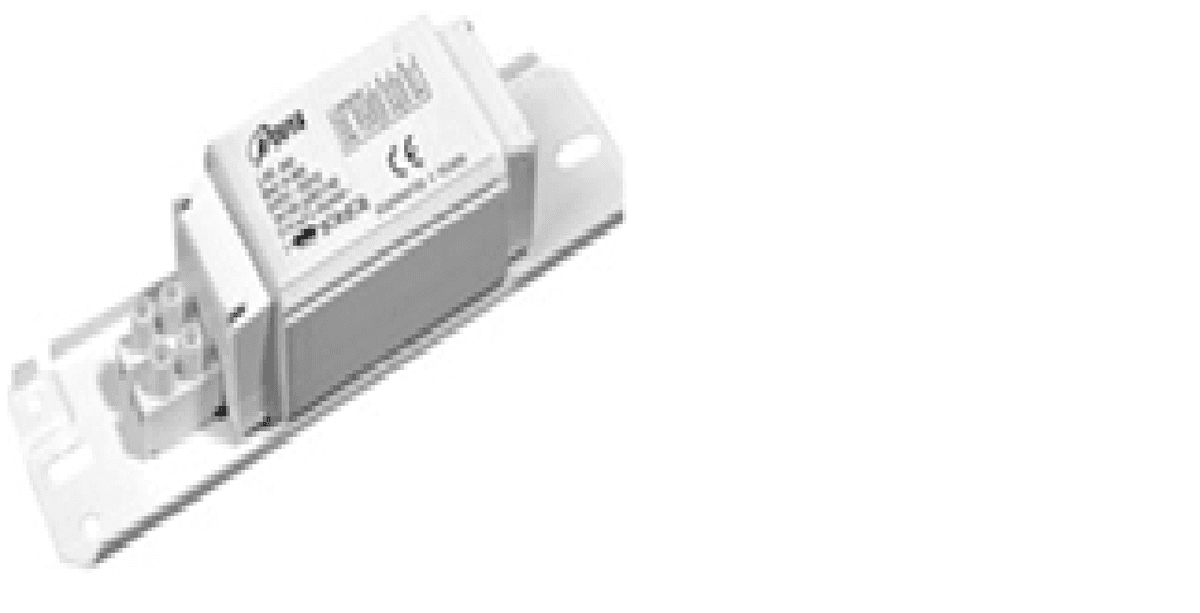

    What is the main function of the device shown in the figure?
    Question Image
    Use to communicate with outdoor station
    Step down the voltage
    Lock and unlock the door locking device
    Energize the circuit
    30s
  • Q6

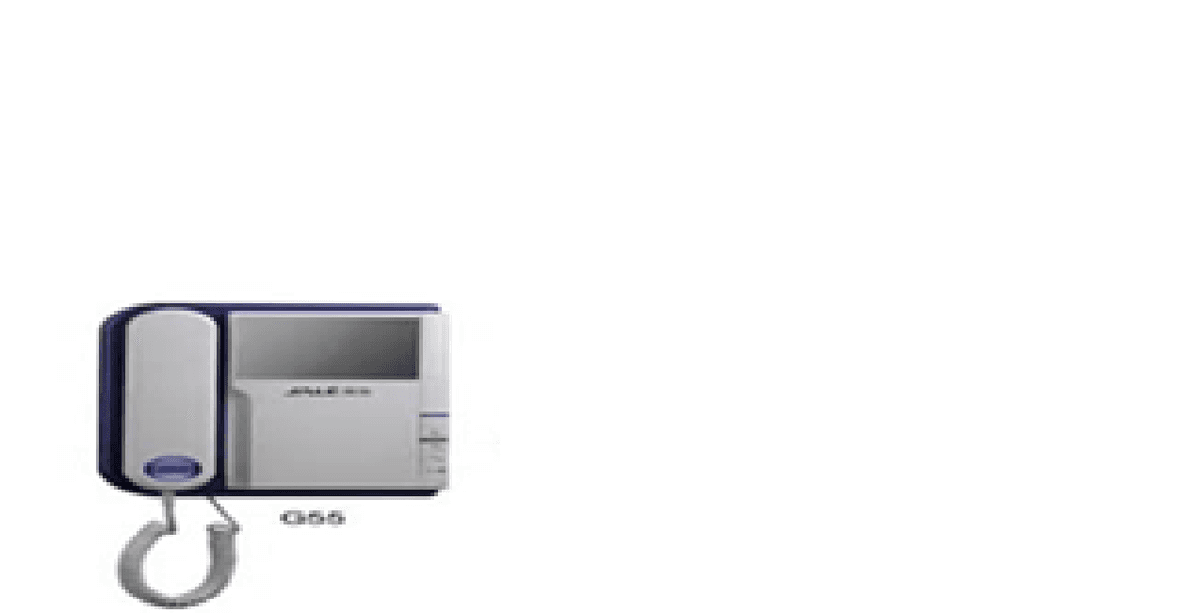

    Name the device shown in the picture
    Question Image
    Door lock unit
    Transformer
    Room station
    Door Station
    30s
  • Q7
    The ………………..is done to ensure that is no break in the circuit.
    Continuity test
    Earthing test
    Insulation test
    Polarity test
    30s
  • Q8

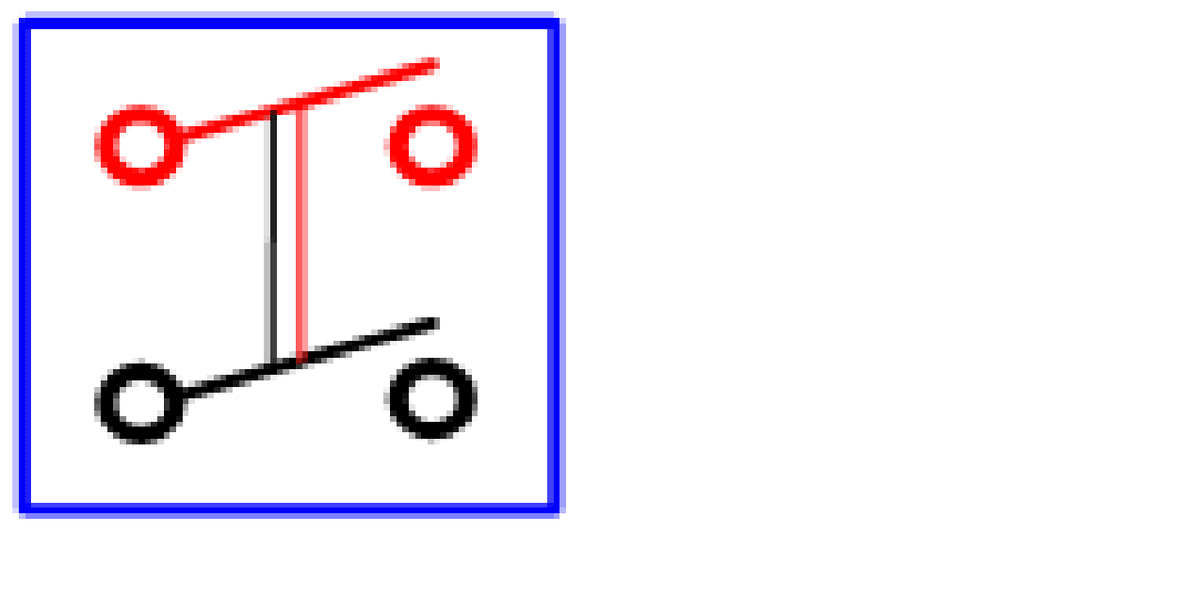

    What type of switch is used in water heater circuit and Air condition circuit?
    Question Image
    Two gang switch
    Double-pole switch
    Three way switch
    Two way switch
    30s
  • Q9

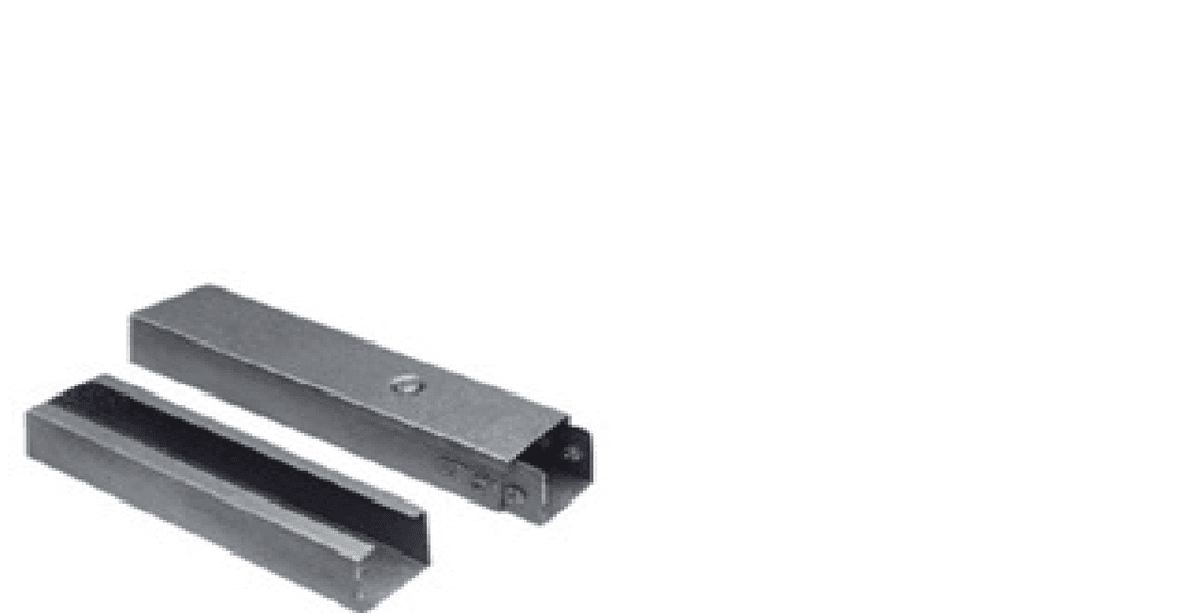

    Which method of cable installation is the figure shown ?
    Question Image
    Method 3 ( Cable in trunk )
    Method 2 ( on surface of the wall )
    Method 1 ( buried in concrete )
    Method 4 ( Conductor in cable tray )
    30s
  • Q10

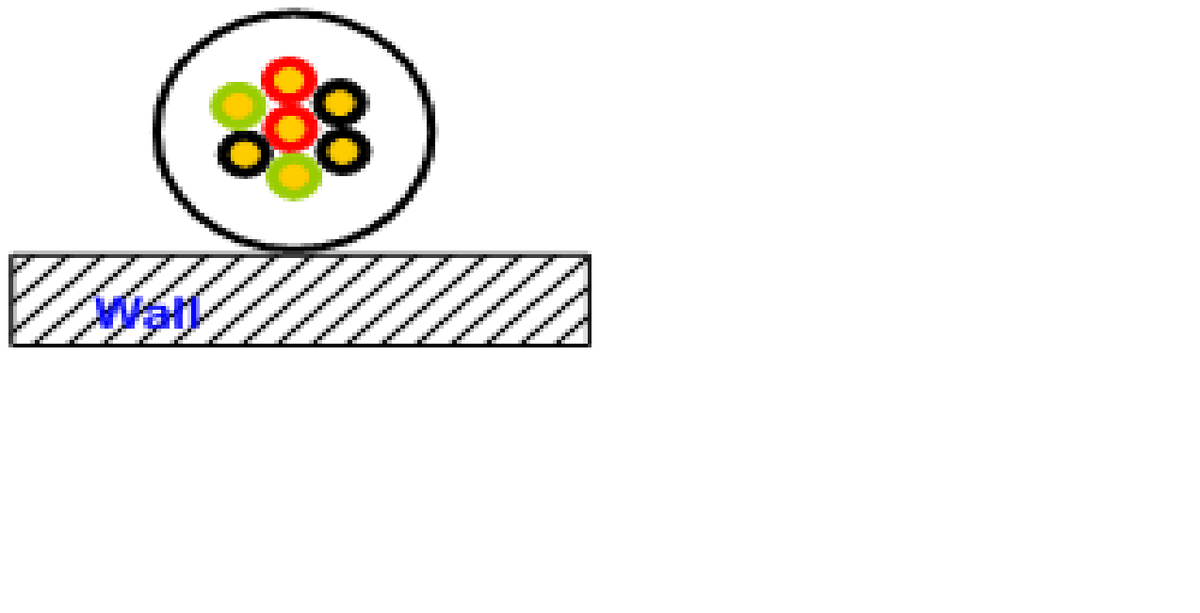

    Which method of cable installation is the figure shown ?
    Question Image
    Method 1 ( buried in concrete )
    Method 2 ( on surface of the wall )
    Method 4 ( Conductor in cable tray )
    Method 3 ( Cable in trunk )
    30s
  • Q11

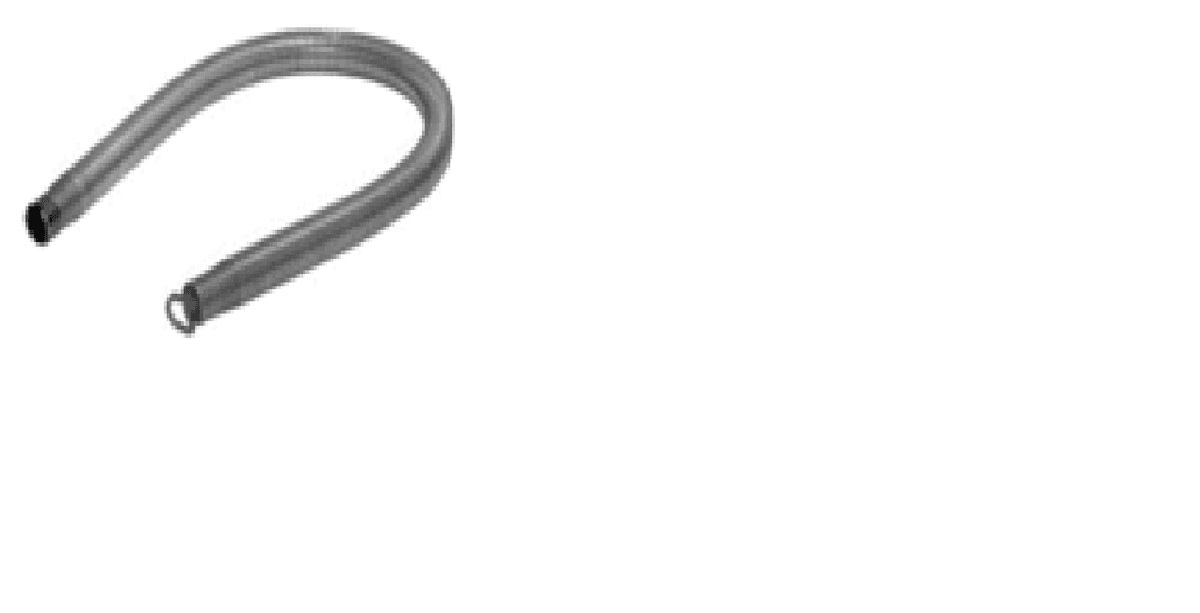

    What is the main function of the figure shown?
    Question Image
    Bend steel conduits
    Bend PVC conduits
    Measure dimensions
    Cut PVC conduits
    30s
  • Q12
    What side of the transformer coil must be connected to the power supply?
    Primary coil
    Transformer frame
    Secondary coil
    Iron core
    30s
  • Q13
    One of the basic rules in workshop safety is:
    Wearing sport shoes
    Using insulated tools
    Working on a Live circuit
    Never test the circuit
    30s
  • Q14
    The total resistance for the circuit shown in figure is:
    Question Image
    RT = R1 + R2
    RT = (R1 x R2) / (R1+R2)
    RT = R1 × R2
    RT = R1 / R2
    30s
  • Q15
    The device shown in the picture will activate when it sense ……………
    Question Image
    Light
    Motion
    Darkness
    Air
    30s
