- Q 1/30Score 0

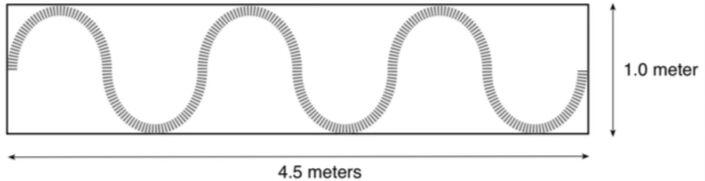

A student produces a wave in a spring stretched on a table by shaking one end at a frequency of 2 Hz. Determine the amplitude of the wave produced in the spring.
29Users enter free text
- Q1
A student produces a wave in a spring stretched on a table by shaking one end at a frequency of 2 Hz. Determine the amplitude of the wave produced in the spring.
Users enter free textType an Answer120s - Q2
A student produces a wave in a spring stretched on a table by shaking one end at a frequency of 2 Hz. Determine the wavelength of the wave produced in the spring.
Users enter free textType an Answer120s - Q3
A wave traveling in a medium has an amplitude of 0.2 m, a wavelength of 0.4 m, and a frequency of 10 Hz. Calculate the speed of the wave.
Users enter free textType an Answer120s - Q4
A wave traveling in a medium has an amplitude of 0.2 m, a wavelength of 0.4 m, and a frequency of 10 Hz. Determine the period of this wave.
Users enter free textType an Answer120s - Q5
The diagram shows a wave moving rightward through a rope. Point P is moving toward the
crest
left
right
trough
120s - Q6
A transverse wave moves to the right in a uniform medium. Point X is a particle of the medium. Which diagram represents the direction of the motion of point X at the instant shown?
(3)
(4)
(1)
(2)
120s - Q7
Earthquakes often cause buildings between 12 and 40 stories high to vibrate at an amplitude high enough to be destructive. Buildings are often designed to absorb this energy that might cause vibration at their natural frequency. This is an example of
diffraction
resonance
Doppler effect
refraction
120s - Q8
A person standing on a sidewalk hears a siren as it comes to, passes by, and goes away from the person. Compared to the frequency of the sound emitted by the siren, the frequency of the sound observed by the person during this event is
first higher and then lower
higher, only
lower, only
first lower and then higher
120s - Q9
The diagram shows a light ray reflecting from a plane mirror. The angle of reflection of the ray is
160º
140º
20º
70º
120s - Q10
A beam of white light entering a glass prism obliquely and emerging as a band of colors illustrates the process of
interference
reflection
diffraction
dispersion
120s - Q11
The diagram shows an incident light ray reflecting from a plane mirror. What is the angle of reflection?
42º
48º
96º
84º
120s - Q12
An amplified sound wave produced by an opera singer shatters a glass. Which best explains this event?
refraction
resonance
reflection
diffraction
120s - Q13
The Doppler effect is best described as the
shift in the observed frequency and wavelength of a wave caused by the relative motion between the wave’s source and an observer
bending of waves as they pass by obstacles or through openings
creation of a standing wave from two waves traveling in opposite directions in the same medium
change in speed of a wave as the wave moves from one medium to another
120s - Q14
Diagram I shows a glass tube containing undisturbed air molecules. Diagram II shows the same glass tube after a wave passes through it. Which type of wave produced the disturbance in Diagram II?
elliptical
transverse
longitudinal
torsional
120s - Q15
In the diagram, two speakers are connected to a sound generator. The speakers produce a sound pattern of constant frequency such that a listener will hear the sound very well at A and C, but not as well at point B. Which wave phenomenon is illustrated by this experiment?
interference
reflection
polarization
refraction
120s
