Q 1/20
Score 0
The height of switch is between ........................... above floor level
29
1 to 1.37 m
1 to 1.5 m
1 to 2 m
any level

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

20 questions

Show answers

Q1
The height of switch is between ........................... above floor level
1 to 1.37 m
1 to 1.5 m
1 to 2 m
any level
30s
Q2
The two resistors shown in the figure are connected in
Radial
Series
Parallel
both
30s
Q3
The law stated in the image used to find the total Resistors connected in
parallel
Radial
Ring Main
series
30s
Q4
Find Total Resistance for a three resistors connected in series if R1 = 3Ω R2 = 6Ω R3 = 8Ω
17 Ω
12 Ω
2 Ω
1.7 Ω
30s
Q5
Find Total Resistance for a two resistors connected in parallel if R1 = 3Ω R2 = 6Ω
2 Ω
3 Ω
12 Ω
4 Ω
30s
Q6
The switch used in the circuit shown is
one way switch
Two gang switch
two way switch
two pole switch
30s
Q7
The size of wire used in the circuit shown is
4 mm2
1 mm2
2.5 mm2
1.5 mm2
30s
Q8
The device shown in the figure is
Avo meter
Ammeter
ohm meter
frequency
30s
Q9

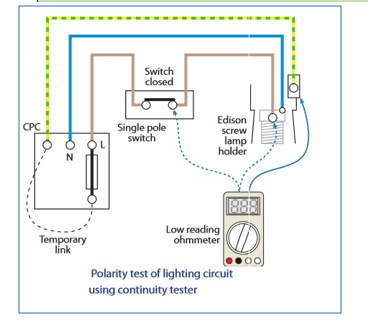

The test carried out in the pictures is
polarity test
insulation test
Continuity test
earthing test
30s
Q10

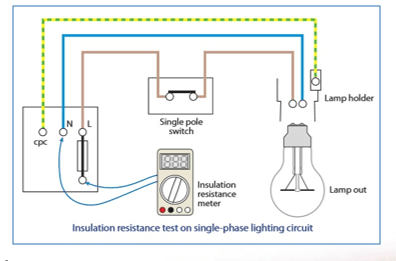

The test carried out in the picture shown is
Insulation test
earthing test
continuity test
polarity test
30s
Q11

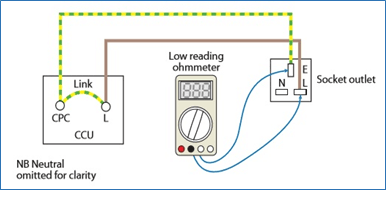

The test mentioned in the image is
continuity test
insulation test
earthing test
polarity test
30s
Q12
The test mentioned in the image is
polarity test
continuity test
earthing test
insulation test
30s
Q13
The distribution board shall be installed so that its center shall remain at a height of ......................... from the floor level.
1500 mm (1.5 m)
any level
150 mm (1.05 m)
100 mm (1 m)
30s
Q14
an electrical heater connected across 240 volt and the current Flowing in the circuit is 8 Ampere. Calculate the power and the energy when the heater works for 10 hours.
P=1920 v W= 19.2 Kw.h
P=920 w W= 9.2 w.h
P=1920 w W= 19.2 Kw.h
P=192 w W= 19.2 Kw.h
30s
Q15
The sockets in the circuit shown is connected as
Radial
Ring main
series
Both
30s
