TEKS Grade 8 Science - 8.7.B The Lunar Cycle

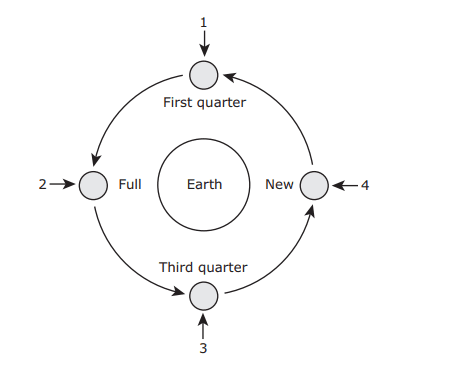

The diagram below shows four phases of the moon as it revolves around Earth. A student builds a model based on this diagram. The student uses foam balls to represent the moon and Earth and a flashlight to represent the sun. The student should shine the flashlight on the model of Earth from Position —

A phase of the moon is shown below Which pair of diagrams shows the moon’s phase immediately before and immediately after this phase?

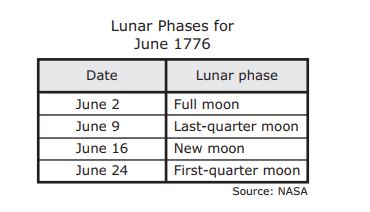

On July 4, 1776, the American colonies declared their independence. The table shows the lunar phases for June 1776. What lunar phase occurred on July 4, 1776?

The diagram below shows four consecutive moon phases. Which of the following diagrams shows the next four moon phases in the correct order?

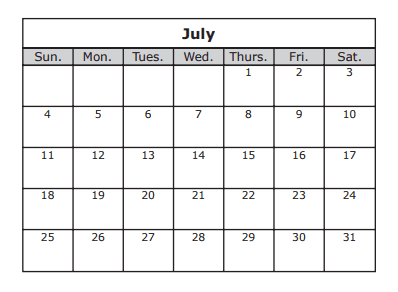

Two friends want to go for a night hike when there is a full moon in July. If there is a third-quarter moon on July 2, what is the approximate date of the next full moon?

Some students used records from the U.S. Naval Observatory to make the table below of the percent of the moon that was visible on each night in January 2011. Based on these data, what part of the lunar cycle occurred between January 5 and January 7?

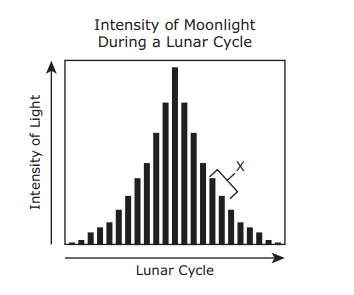

The moon reflects different amounts of sunlight onto Earth at different times. This reflected sunlight is commonly called moonlight. The graph below shows the intensity of moonlight at different times in a lunar cycle. Which moon phase most likely occurs at the time in the cycle represented by an X on the graph?

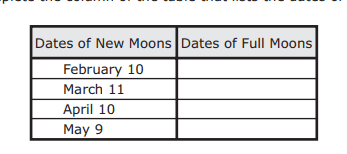

A student must complete the column of the table that lists the dates of the full moons. What are the most likely dates of the full moons?

A student uses paper and fasteners to create a model of Earth, the sun, and the moon. The sun and Earth are attached to the paper background, while the moon is free to revolve around Earth. Which diagram shows the objects arranged so that a new moon would be visible from Earth?
