Transmission Level 3
Quiz by Paul Jason Griffith
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
26 questions
Show answers

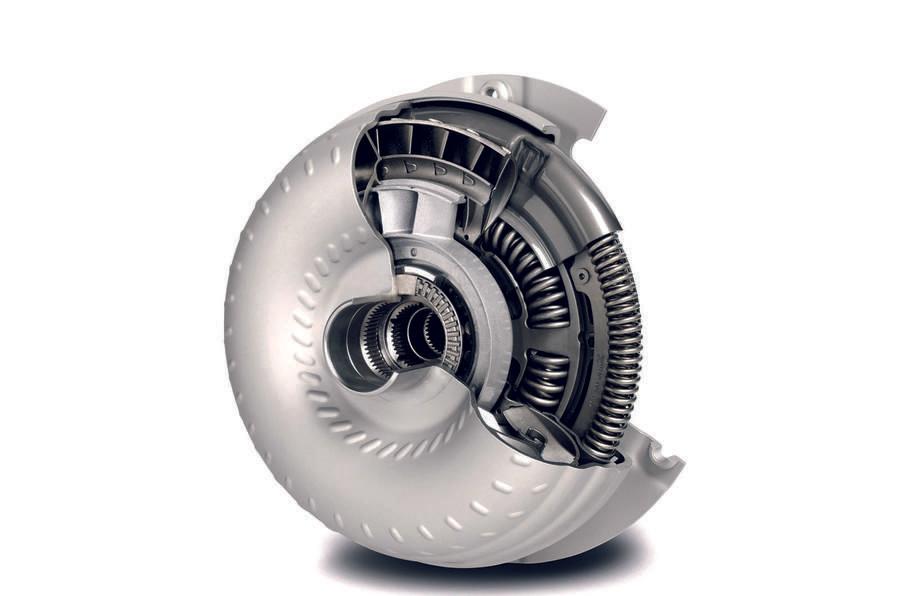

- Q1Name the component in the picture.Self adjusting clutchTorque converterDual mass flywheelRear brake drum30s
- Q2Which part of the torque converter is driven by the engine?StatorLock up clutchImpellerTurbine30s
- Q3A small gear (input) has 5 teeth and the larger gear (output) has 25 teeth. This would have a gear ratio of:4:15:12.5:10.2:130s
- Q4Which of these components would you find in an Automatic gearbox?Synchromesh gearsBrake bandsDiaphragm spring clutchSpur gears30s
- Q5True or False. An Automatic gearbox uses a flywheel.FalseTrue30s
- Q6Name the part in the image.Brake shoeBrake clutchBrake bandG clamp30s
- Q7A planetary gearset consists of a sun gear, planetary gears and __________?Valve bodyPlanet carrierClutch discCheck valve30s
- Q8What is the torque converter bolted too?TurbineFlex plateCrankshaftFlywheel30s
- Q9A twisting force applied to a shaft is known as_________?Foot poundsTorqueWorkNewton metres30s
- Q10Technician A says an automatic transmission's valve body connects and disconnects the engine and transmission. Technician B says an automatic transmission's torque converter connects and disconnects the engine and transmission. Who is right?Technician B onlyNeither technician A nor BBoth technicians A and BTechnician A only45s
- Q11Which of the following is not a basic component of a modern automatic transmission?Pistons and servosTransmission bandsPlanetary gearsetsPinion seals45s
- Q12What does CVT in a CVT gearbox stand for?Continuously Virtual TransmissionContinuously Variable TransmissionConstant Variable TransmissionConstant Variant Transmitter45s
- Q13Which of these components would you not find in a CVT gearbox?GearsInput pulleyBeltOutput pulley45s
- Q14Which gears does Input clutch 1 drive?2, 4 and 61, 3, 5 and 71,2,3 and 41, 3, 4 and 645s
- Q15Can you identify component 2?Ring springSynchro hubBaulk ringHelical gear45s
