Understand and apply domestic rainwater system installation and maintenance techniques

Quiz by Ricky Fleet

Feel free to use or edit a copy

includes Teacher and Student dashboards

Measure skills
from any curriculum

Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

With a free account, teachers can
  • edit the questions
  • save a copy for later
  • start a class game
  • automatically assign follow-up activities based on students’ scores
  • assign as homework
  • share a link with colleagues
  • print as a bubble sheet

Our brand new solo games combine with your quiz, on the same screen

Correct quiz answers unlock more play!

New Quizalize solo game modes
47 questions
Show answers
  • Q1
    Which below is a reason for guttering systems?
    All of the above
    To protect building foundations
    To prevent water penetration and damp in the building
    To reduce ground erosion
    30s
  • Q2
    Which component abbreviation would be connected to a surface drainage system
    FWG
    All of the above
    SVP
    RWP
    30s
  • Q3
    Which drainage system is designed to prevent cross contamination occurring between surface and foul water?
    Combined
    Unvented
    Partially separate
    Separate
    30s
  • Q4

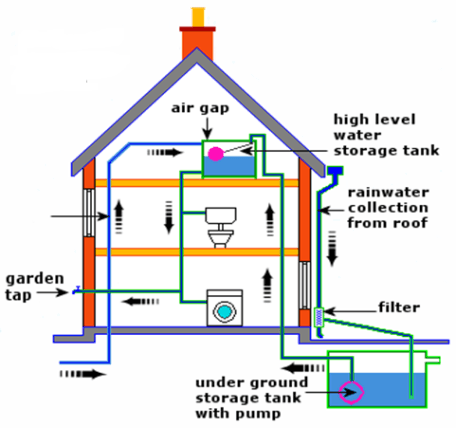

    What type of rainwater system is shown in the image?
    Question Image
    Rainwater harvesting system
    Partially separate system
    Separate system
    Combined system
    30s
  • Q5
    Which rainwater gutter material expands the most
    Lead
    Cast iron
    Extruded aluminium
    uPVC
    30s
  • Q6
    Which gutter material can lengths be installed up to 30m before a joint is required
    Extruded aluminium
    Cast iron
    Lead
    uPVC
    30s
  • Q7
    Which type of gutter requires frequent painting to prevent rust occurring
    uPVC
    Lead
    Cast iron
    Extruded aluminium
    30s
  • Q8
    A gutter system that directs water from the roof into a separate located pit sited away from the dwelling and drains naturally away into the water table is a
    Surface water drain
    Soakaway drain
    Rainwater harvesting system
    Combined sewer drainage system
    30s
  • Q9
    What is the fitting shown?
    Question Image
    Fascia board bracket
    Round to ogee gutter union
    Running outlet
    Round to square gutter union
    30s
  • Q10

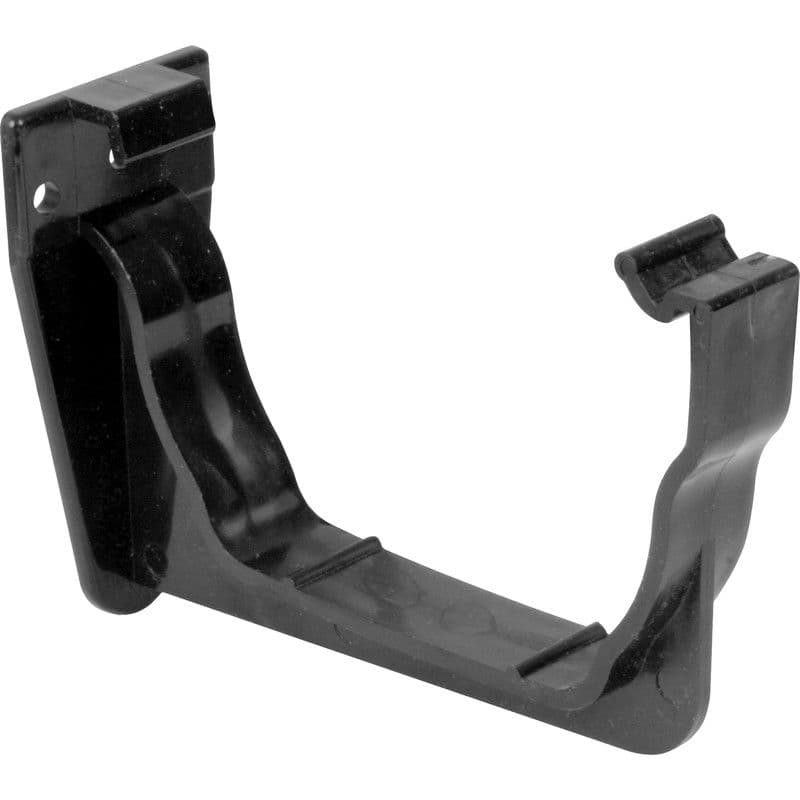

    What is the component shown?
    Question Image
    Downpipe bracket
    Fascia bracket
    Stop end
    Gutter union
    30s
  • Q11
    Which document states the requirements for rainwater to be carried from the roof of the building
    Document P
    Document L1
    Document G1
    Document H3
    30s
  • Q12
    A gutter system with a fall of 1:600 and is 6m long has a total fall of
    30mm
    20mm
    15mm
    10mm
    30s
  • Q13
    What is the component shown?
    Question Image
    Running outlet
    Gutter union
    Stop end
    Downpipe bracket
    30s
  • Q14
    In areas that suffer heavy snow, fascia brackets are spaced at
    350mm
    750mm
    450mm
    1000mm
    30s
  • Q15
    Recommended fascia bracket spacing for gutter in normal weather conditions is
    550mm
    450mm
    750mm
    1m
    30s
