- Q 1/46Score 0The cutting of special threads in lathe machine are:29Internal and external threadTaps and diesV-threadSquare, Acme and Buttress
Our brand new solo games combine with your quiz, on the same screen
Correct quiz answers unlock more play!
46 questions
Show answers
- Q1The cutting of special threads in lathe machine are:Internal and external threadTaps and diesV-threadSquare, Acme and Buttress20s

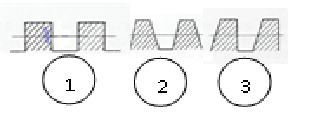

- Q2The figure shown is an example of what thread?V-threadButtressAcmeSquare20s
- Q3The figure shown is an example of what thread?ButtressV-threadSquareAcme20s
- Q4The figure shown is an example of what thread?V-threadSquareAcmeButtress20s
- Q5The figure shown is not included in cutting of special thread is calledV-threadAcmeSquareButtress20s
- Q6The thread that have a greater efficiency and minimum friction is:ButtressSquareBSW ThreadAcme20s
- Q7Special thread that has one face that resist heavy load in one directionBSW ThreadButtressV-threadSquare20s
- Q8The thread that has sufficient clearance on diameter for free movement isAcmeBSF ThreadButtressSquare20s
- Q9The included thread angle of an Acme thread is ____ degrees.4590291520s
- Q10The included angle of a common type of Buttress thread is:2955456020s
- Q11An easy method of cutting an Acme thread is:V- tool then Acme toolSquare tool then Acme toolV- tool then square toolDie stock then Acme tool20s
- Q12Acme thread engages in the figure shown in lead screw much easier is calledSplit nutSpecial nutHalf nutFull nut20s
- Q13This equation is used for calculatingThread depthThread angleThread pitchThread width20s
- Q14What is “P” in the following equationThread depthThread widthThread angleThread pitch20s
- Q15What is “W” in the following equation?Thread angleThread depthThread widthThread pitch20s
