Central heating systems
Quiz by Ricky Fleet
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
28 questions
Show answers
- Q1What is the main purpose of central heating?To heat the boiler upTo maintain thermal comfortTo maintain thermal coolingTo combat climate change30s

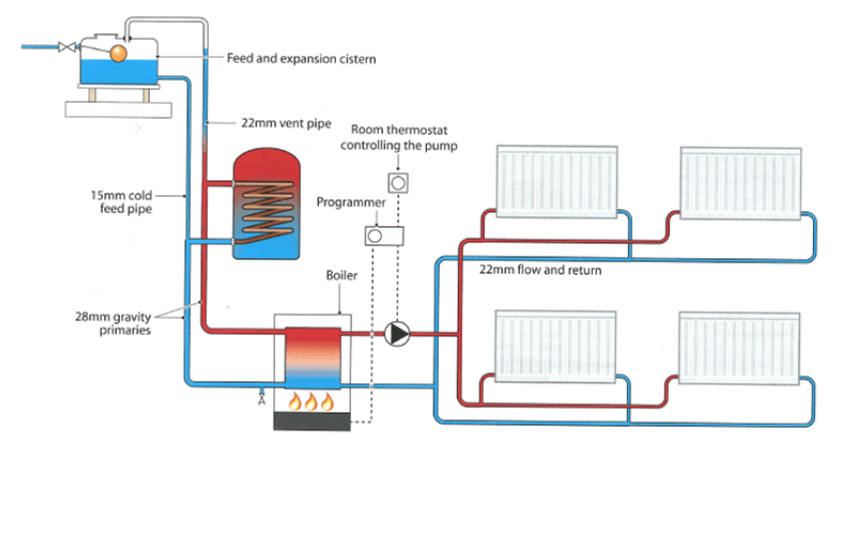

- Q2What type of pipework system is shown in the diagram?3 pipe1 pipeBalanced pipe2 pipe30s

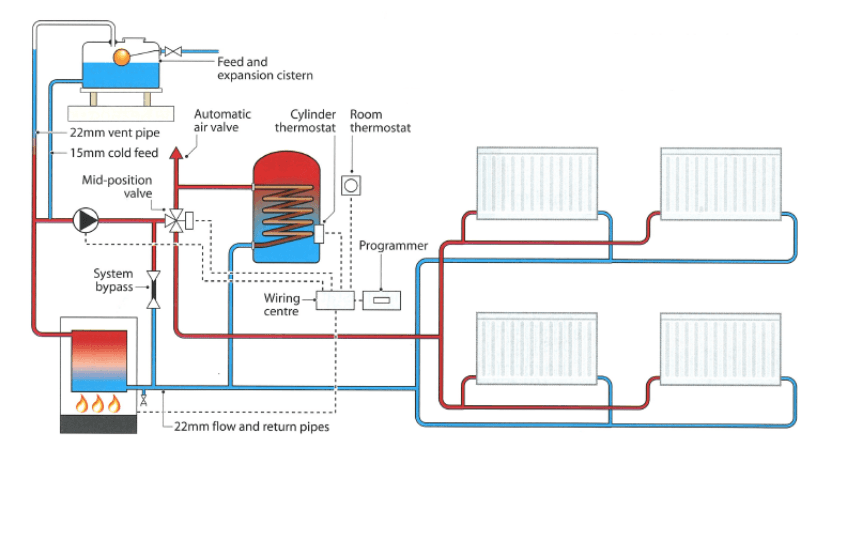

- Q3What type of pipework system is shown in the diagram?Balanced pipe2 pipe3 pipe1 pipe30s

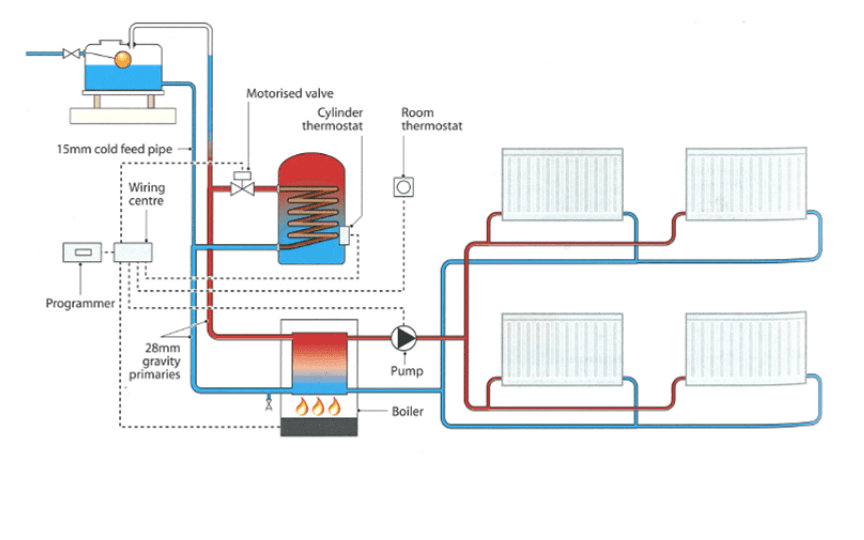

- Q4Identify the heating system from the schematic1 pipe gravity system2 pipe gravity systemY plan system1 pipe reverse return system30s

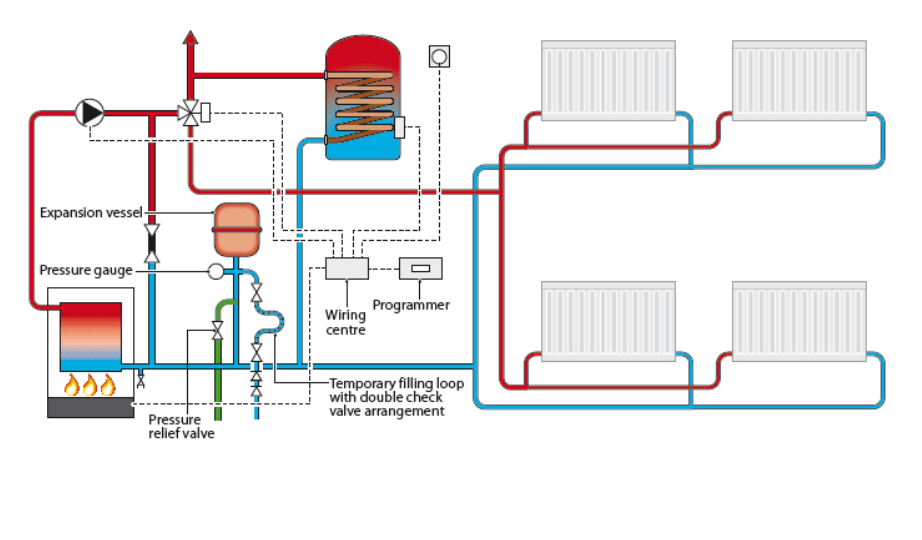

- Q5Identify the heating system from the schematic1 pipe semi gravity Y plan2 pipe semi gravity with heat sinkTwo pipe S plan system2 pipe reverse return C plan30s

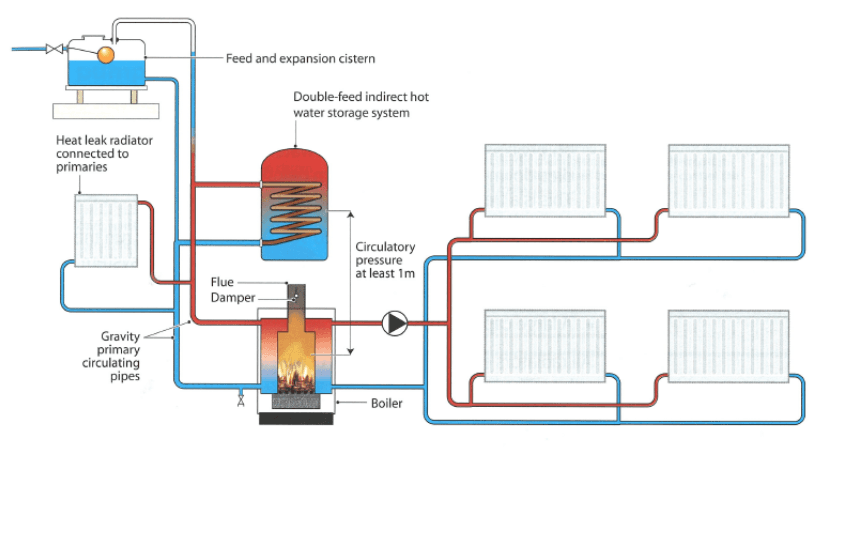

- Q6Identify the heating system from the schematicC planY planS planW plan30s

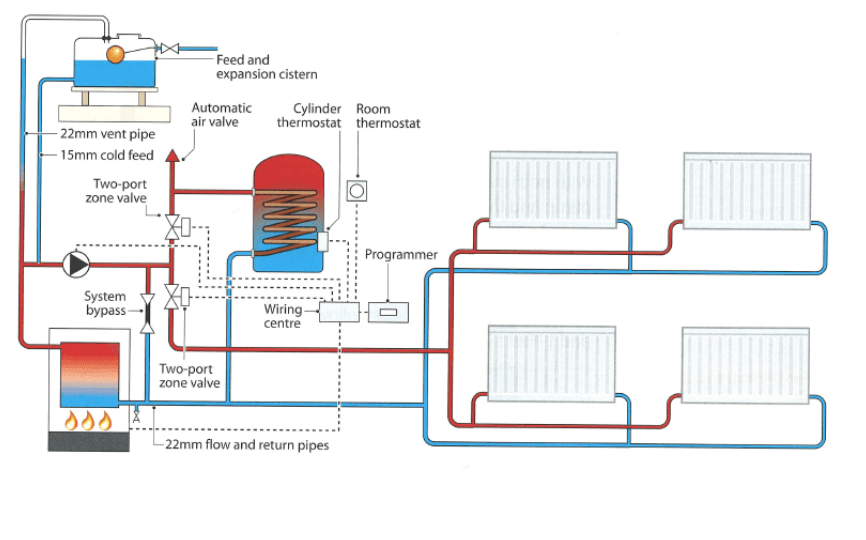

- Q7Identify the heating system from the schematicOpen vented Y planSealed C planSealed Y planOpen vented S plan30s
- Q8Identify the heating system from the schematicSealed C planSealed Y planOpen vented S planOpen vented W plan30s
- Q9Identify the heating system from the schematicOpen vented C planSealed S planOpen vented Y planSealed Y plan30s

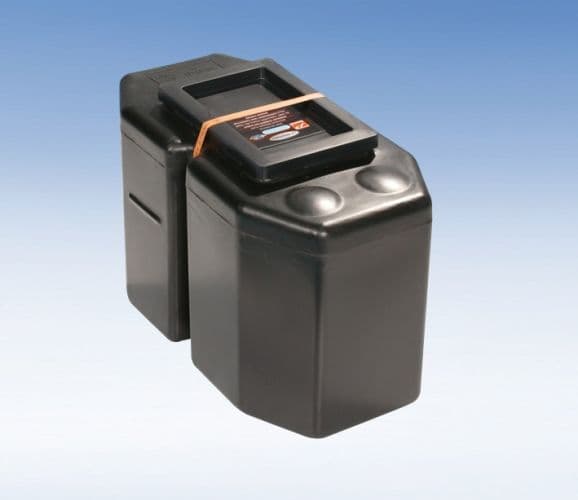

- Q10What is the following component used for?To allow for the inspection of the system and thermal comfortTo allow for filling of the heating system and thermal expansionTo allow the overflowing float operated valve somewhere to fillTo allow for the draining of the system and thermal expansion30s
- Q11What is the open safety vent for on a heating system?Allows for thermal expansionAllows for balancing the systemAllows for control of the temperature in a systemAllows for filling the system30s
- Q12What is the following component?Wheel head radiator valveThermostatic radiator valveAir separatorLockshield radiator valve30s
- Q13What is the following component?Thermostatic radiator valveWheel head radiator valveBypass valveLockshield radiator valve30s
- Q14What is the following component?Wheel head radiator valveLockshield radiator valveAir separatorThermostatic radiator valve30s
- Q15What is the following component?Thermostatic radiator valveAutomatic bypass valveTwo port valveLockshield radiator valve30s
