FINAL REVISION MAC804 2nd semester 2024/2025
QuizĀ by Shaikh Abdullah Machine Shop
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
In term 48H8/f7, (48) means:
In term 54H8/f7, ( f7 ) means:
In fit shown in figure the dimension X means
The type of fits shown in figure is
The type of fits shown in figure is

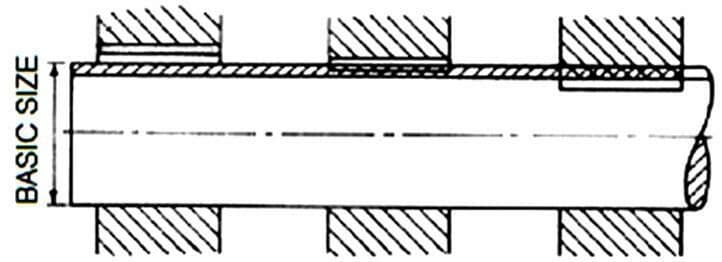

The fits system shown in figure is
The fits system shown in figure is
Which of the following is a non Ferrous Material?
The bolt shown in figure is made of :
The vice shown in figure is made of :
The property of material shown in figure is
The hold method shown in figure is called
The part shown in figure is called
The part shown in figure is called
Driving plate and carrier shown in figure are used to
Method of alignment shown in figure is
In turning operations, to prevent bending for long and thin work piece, we use

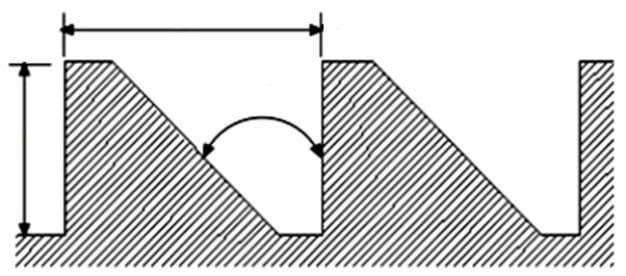

The types of special thread shown in figure is
The types of special thread shown in figure is
The types of special thread shown in figure is
When cut square thread on lathe machine (d) in the formula shown means
When cut thread on lathe machine (n) in the formula shown means
When cut thread on lathe machine (L) in the formula shown means
The number of starts of the thread shown in the figure is:
The number of starts of the thread shown in the figure is:
The machine tool shown in the figure is called
The machine shown in the figure is called
The milling method shown in figure is called
The milling method shown in figure is called
The milling operation shown in figure is called
The operation shown in figure represents
The milling operation shown in figure is called
The milling cutter shown in figure is called
The milling cutter holder shown in the figure is called:
The type of holding device shown in the figure is called:
Name the parts for the following Machine:
Name the labeled parts of the machine shown in figure
Link ferrous metals andĀ Non- ferrous metals
In a thread size with specification SQ 60 x 4.00 LH
In square thread shown in figureĀ (W) Means
In square thread shown in figureĀ (d) Means
In square thread shown in figureĀ (P) Means
State cutter holding methods in milling machines
For milling operation shown in figure
For milling operation shown in figure
Adevice used to supportĀ long work piece between center
Calculate the Lead for a 25 mm Diameter Double start thread with4 mm Pitch Where in;
Lead = No. of Starts x Pitch:Ā Ā Ā Ā L= n x P
Calculate the spindle speed (N) of a milling machine when using end mill cutter has diameter 21mm using a cutting speed of 30 m/min.Ā Ā Ā N = (Sx1000)/(ĻxD)
The name of grinder shown in figure is
The type of Wheel shown in figure is
The machine shown in figure is called
