Know common plumbing hand and power tools
Quiz by Ricky Fleet
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
21 questions
Show answers
- Q1Which specialist tool may be required when removing the body of a non-rising pillar tap?Circlip pliersBasin wrenchStilson wrenchAdjustable spanner30s

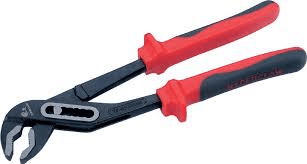

- Q2What is the name of the tool shown in the image?Basin wrenchSpirit levelStilson wrnechMole grips30s
- Q3Which one of the following sets of tools should be used to cut a waste hole in brickwork?SDS drill with hole sawBall pein hammer and screwdriverSDS drill with diamond core drillClaw hammer with bevel edged chisel30s
- Q4The correct tool used to cut Polybutylene pipe is a...PadsawHacksawJunior hacksawPlastic pipe cutter30s
- Q5What is the name of the tool shown in the image?Footprint spannerAdjustable spannerPump pliersStilson wrench30s
- Q6A tool specially designed for removing mortar joints from brickwork is a...Flat chiselPlugging chiselBolster chiselWood chisel30s
- Q7Which tool is suitable for fixing 13mm monobloc mixer taps to sanitary ware?Box spannerRing spannerAdjustable spannerBasin wrench30s
- Q8Which guard is the main safety feature on a powered circular saw?ChuckPipeFenceBlade30s
- Q9What is the main safety risk associated with a chisel with a ‘mushroomed head’DermatitisHearing damageFlying steel splintersTool slippage30s
- Q10Which is the most important item of PPE to wear when using a large hammer drill?Hi-visibility jacketSafety gogglesBarrier creamDust mask30s
- Q11Which tool can be used to cut plastic waste pipes?Wood sawPadsawPipe sliceHacksaw30s
- Q12What tool is used to fabricate small bore R250 copper pipe?Pipe sliceMicrobore scissor benderBlowtorchScissor bending machine30s
- Q13What is the following tool used for?Cutting holes in plastic cold water storage cisternsCutting holes in Low Carbon steelCutting out blockworkCutting holes in masonry30s
- Q14What is the power tool shown in the image?Reciprocating sawCordless drillCircular sawJigsaw30s
- Q15Which of the following checks should you carry out prior to using any power tool?There are no bare wires and conductors visibleAll of the aboveThe outer casing is undamagedThe plug is in good condition (no cracks, pins unbent)30s
