TLE EPAS - Second Quarter Examination
Quiz by Marvin Joseph Fernandez
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.

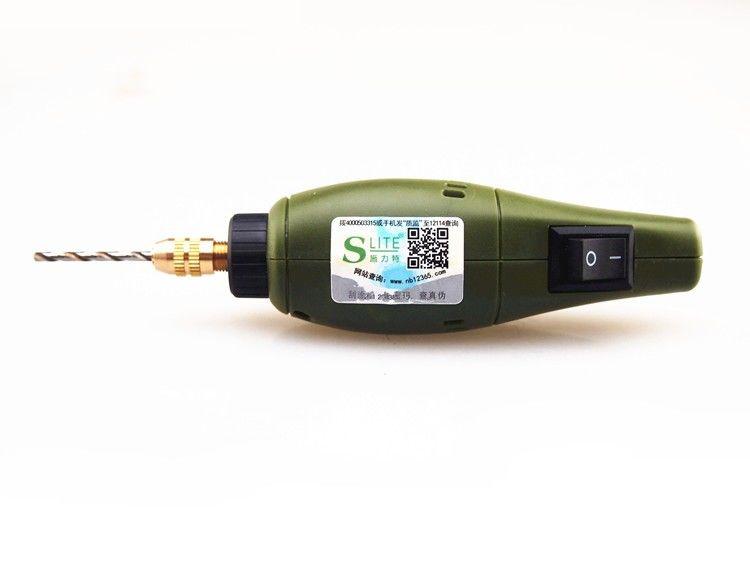

​What hand tool is being shown in this image?
Desoldering Pump
Soldering Iron
12v Mini Drill
Electric Drill

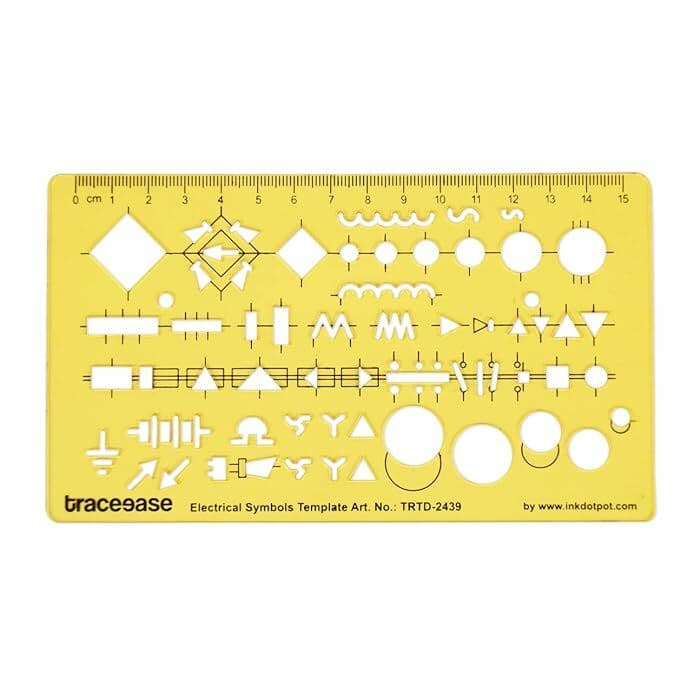

​What classification of hand tool is being shown in this image?
Boring tools
Splicing tools
Driving tools
Cutting tools
What hand tool is being shown in this image?
What classification of hand tool is being shown in this image?
What hand tool is being shown in this image?
What classification of hand tool is being shown in this image?
What hand tool is being shown in the image?
What hand tool is shown in this image?
Identify what Electronic Equipment is shown in this image?
What is the hand tool shown in this image?
What is the Electronic Drawing Equipment shown in the picture?
What is the Drawing Equipment shown in the picture?
What hand tool is being shown in this image?
What hand tool is being shown in this image?
What electronic equipment is being shown in this image?
What hand tool is being shown in this image?
What is the exact voltage that passes through a 6 Ω resistor when 3A of current passes through it?
When a third bulb is added to the connection to the two bulbs in series, what happens to the illumination of the bulbs?
What color in the color coding scheme has an equivalent of 5?
What is the color of the tolerance representing± 10%?
What is the value of a resistor with the following colors : Green - Black- Silver- Gold?
 What is the value of a resistor with the following colors: Red- Red- Red - Gold?
What isthe item in the color coding scheme that allows the color-coded value todeviate to a certain extent?Â
What is the schematic symbol presented in this image?
What is the schematic symbol presented in this image?
What is the schematic symbol presented in this image?
If R1 = 10 ohms and R2 = 10 ohms, what is the total resistance of the circuit?Â
If R1 = 5 ohms and R2 = 20 ohms, what is the total resistance of the circuit?
If R1 = 10 ohms and R2 = 100 ohms, what is the total resistance of the circuit?
If R1 = 20 ohms and R2 = 50 ohms, what is the total resistance of the circuit?
What is the total current of the circuit below?
If R1 = 2 ohms, R2 = 3 ohms, what is the total current of the circuit if it is powered by a 6v battery?
 What is the value of a resistor with the following colors: Green - Black- orange - Gold?
 What is the value of a resistor with the following colors: brown- Red- orange - Gold?
 What is the value of a resistor with the following colors: Blue- Yellow- Red - Gold?
 What is the value of a resistor with the following colors: Orange- Green- Yellow - Gold?
Which equipment does NOT belong to the group?
Which is NOT part of the group?
 Which component resists the flow of current in an electrical circuit?         Â
What classification of hand tool does the tool presented below belong?
What is the Hand tool shown in the picture?
What is the Hand tool shown in the picture?
