Domestic Hot Water Systems
Quiz by Ricky Fleet
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Measure skills
from any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
With a free account, teachers can
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
16 questions
Show answers
- Q1What document covers the installation of domestic hot water services?BSEN806BS6700BS1717BS44230s
- Q2Details of the positions of pipes and components for a hot water system installation can be found...By asking the customerIn the material scheduleOn the installation planIn the bill of quantities30s
- Q3Which one of the following domestic systems is outside the scope of BSEN806?SanitationHot waterUnvented hot waterCold water30s
- Q4Which one of the following heat sources is regarded as a renewable source of energy?Coal in a solid fuel boilerGas in a condensing boilerSolar panels on the roof of a propertyElectricity supplying an immersion heater30s
- Q5Where would state the maximum flow rate and temperature for a particular pumped shower that has been installed?The Water RegulationsBuilding Regulations part GBSEN806The manufacturer’s instructions30s
- Q6Under Building Regulations part G, what is a new or replacement immersion heater required to have?Protective coating to avoid electrolytic corrosionTemperature relief valveNon-resetting overheat thermostatRestricted thermostat to a maximum temperature of 600C30s
- Q7Which of these is NOT a renewable fuel?SolarCoalWindHydroelectric30s
- Q8Which of the following is a renewable energy source?Natural gasHeat pumpCoalOil30s
- Q9Which of the following is a disadvantage of open vented hot water systems?Water can be discolouredHigh pressure at all outletsMore pipework and costs to installLack of water if supply is interrupted30s
- Q10Which of the following is a disadvantage of sealed hot water systems?Higher water velocity and potential system noiseBackup supply of hot water in the event of a supply disruptionLow pressure at all outletsCisterns in loft prone to freezing30s
- Q11Which of the following is an advantage of open vented hot water systems?High pressure without pumps to give a better showerCapable of supplying larger properties with hot water at multiple outletsHigh pressure and more prone to leaksCheaper to install30s
- Q12Which of the following is an advantage of a combination boiler system?Localised hot water for multiple hot outletsBalanced low pressure at all hot water outletsLess pipework and components that can failLower water velocity and potential system noise30s
- Q13What type of system does the picture show?Multicoil unvented systemPrimatic single feed systemIndirect double feed systemCombination boiler system30s

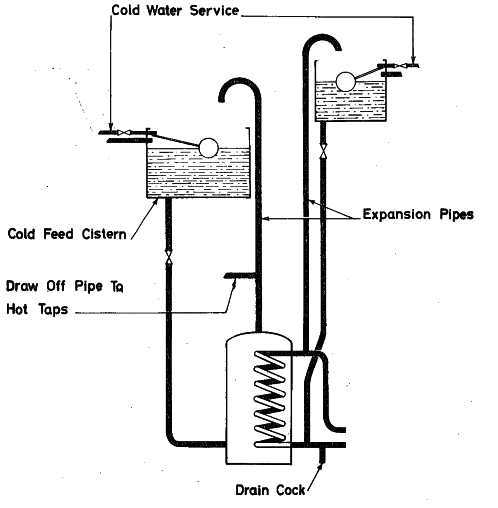

- Q14What is the system shown in the diagram?Direct open vented systemUnvented systemCombination boiler systemIndirect double feed system30s
- Q15What is the system shown in the diagram?Localized under sink storage heater systemPressurized direct hot water systemOpen vented single feed indirect systemCombination boiler system30s
