Formative Assessment in TLE Grade 10-Electrical and Installation Maintenance (BNHS)
Quiz by CID Office SDO Balanga
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
- Q1
It is a form of energy that is carried through wires and is used to operate machines, lights, etc.
Current
Electricity
Voltage
Power
30s - Q2
What kind tools are used to loosen or tighten screws with slotted heads?
Hammer
Pliers
None of the above
Screw drivers
30s - Q3
This device connects and disconnects the flow of electric current in a circuit.
Fuse
Convenience outlet
Circuit breaker
Switch
30s - Q4
Identify the value of graduation, pointed by the arrow.
1/2 of an inch
1/8 of an inch
1/4 of an inch
1/6 of an inch
30s - Q5
Convert 10 ft. to __________ cm.
3048 cm.
304.8 cm.
3.048 cm
30.48 cm.
30s - Q6
Name the different parts of multi-tester base from designated number.
5,4,3,2,1,6,7
7,6,5,4,3,2,1
1,2,3,4,5,6,7
2,3,4,5,6,7,1
30s - Q7

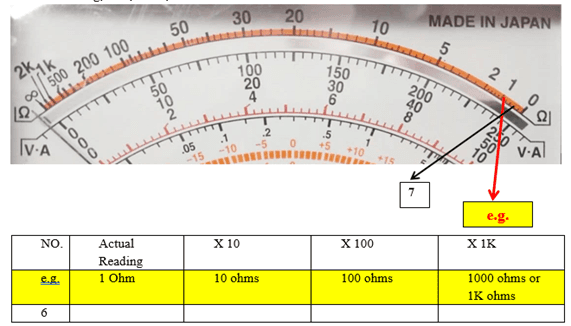

What is the resistance rating of the arrow pointed in the picture below Actual Reading, X10 , X100 ,1K
.8 ohms,8 ohms,80 ohms, 800 ohms
.2 ohms,2 ohms,20 ohms, 200 ohms
.4 ohms,4 ohms,40 ohms, 400 ohms
.6 ohms,6 ohms,60 ohms, 600 ohms
30s - Q8
What is the resistance rating of the arrow pointed in the picture below Actual Reading, X10 , X100 ,1K
4 ohms,40 ohms,400 ohms, 4 K ohms
3.5 ohms,35 ohms,350 ohms, 3.5 K ohms
2.5 ohms,25 ohms,250 ohms, 2.5 K ohms
3 ohms,30 ohms,300 ohms, 3K ohms
30s - Q9

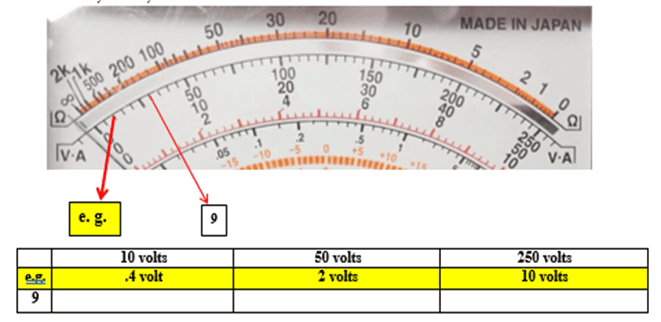

What is the voltage rating of the arrow pointed in the picture below 10 volts , 50 volts. 250 volts
1.2 volts,6 volts,30 volts
1.6 volts,10 volts,34 volts
1.0 volts,4 volts, 28 volts
1.4 volts,8 volts,32 volts
30s - Q10
What is the voltage rating of the arrow pointed in the picture below 10 volts , 50 volts. 250 volts
2.2 volts, 11 volts, 55 volts
2.8 volts, 14 volts, 70 volts
2.4 volts, 12 volts, 60 volts
2.6 volts, 13 volts, 65 volts
30s - Q11
Is a tubular/linear bulb containing mercury vapor and inert gas with phosphor coating inside. What it is?
Incandescent lamp
LED lamp
None of the above
fluorescent lamp
30s - Q12
_________ to Cathode 1(C1) of the bulb
Cathode 3(C3)
Cathode 2(C2)
Line 1(L1)
Line 2(L2)
30s - Q13
Cathode 2(C2) to _________ Starter(S2) to Cathode 3(C3)
Line 2(L2)
Starter 1(S1)
Line 1(L1)
Starter 2(S2)
30s - Q14
___________ to Ballast(B1)
Line 1(L1)
Cathode 3(C3)
Line 2(L2)
Cathode 4(C4)
30s - Q15
Ballast(B2) to ____________
Cathode 3(C3)
Cathode 2(C2)
Line 1(L1)
Line 2(L2)
30s
