MEM18007 - Maintain and Repair Mechanical Drives and Transmission Assemblies
Quiz by Kale Platzer
Feel free to use or edit a copy
includes Teacher and Student dashboards
Measure skillsfrom any curriculum
Tag the questions with any skills you have. Your dashboard will track each student's mastery of each skill.
- edit the questions
- save a copy for later
- start a class game
- automatically assign follow-up activities based on students’ scores
- assign as homework
- share a link with colleagues
- print as a bubble sheet
- Q 1/25Score 0

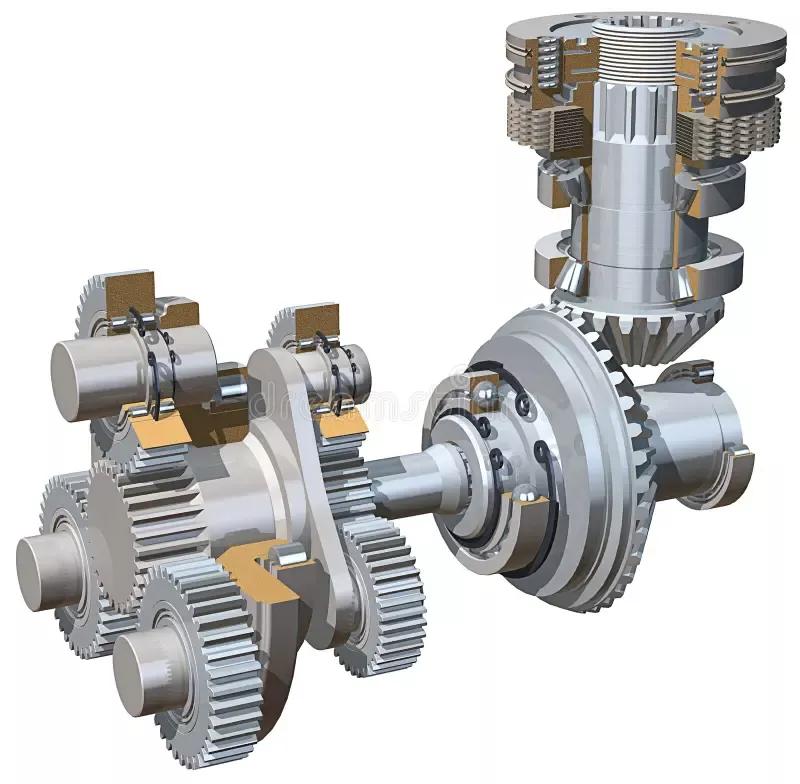

Match the transmission/drive component to it's purpose/use
29Users link answers
- Q1
Match the transmission/drive component to it's purpose/use
Users link answersLinking300s - Q2

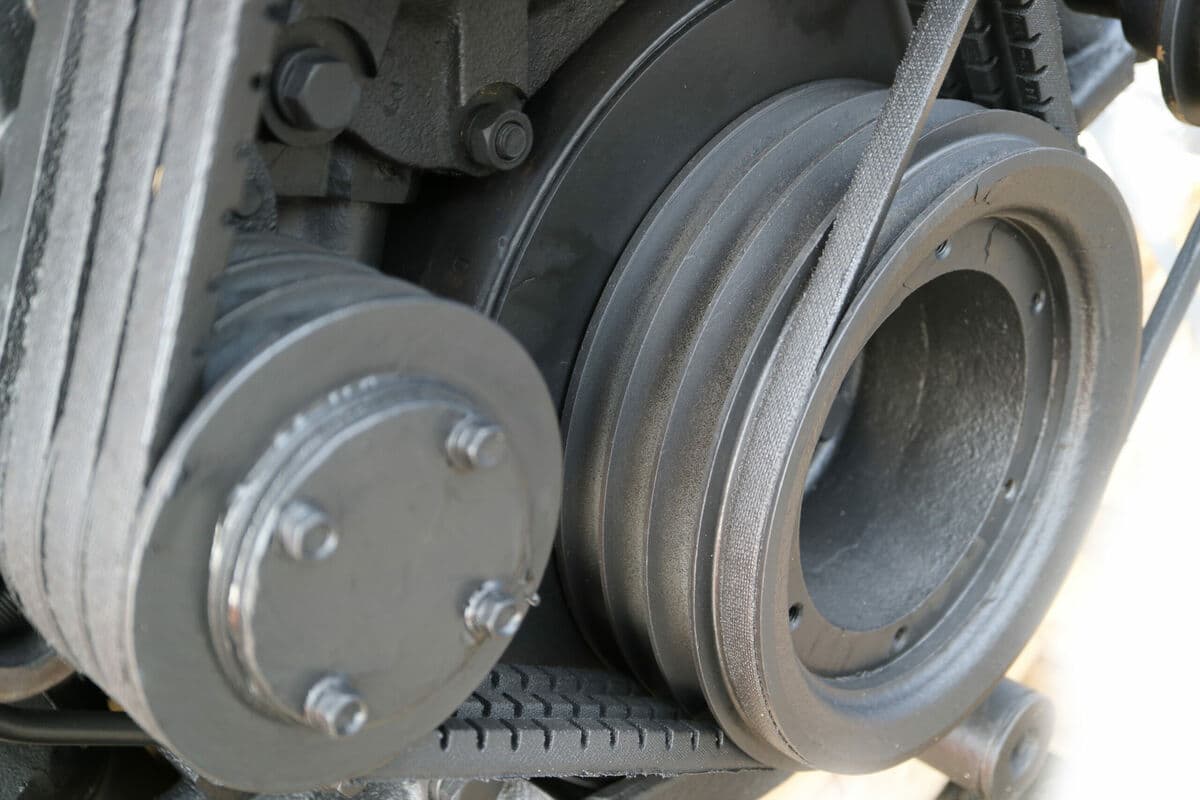

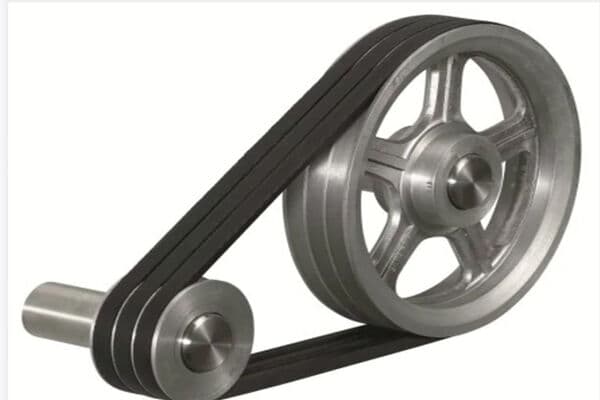

Match the common problems with belt drives to the possible cause
Users link answersLinking300s - Q3

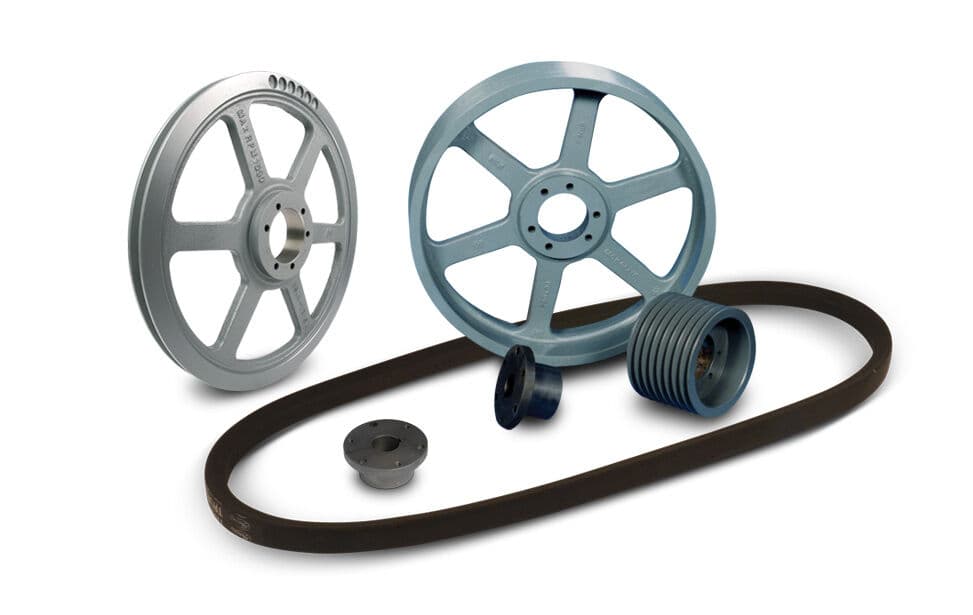

Select the preventative maintenance activities that may be conducted with belt drives
Users sort answers between categoriesSorting300s - Q4

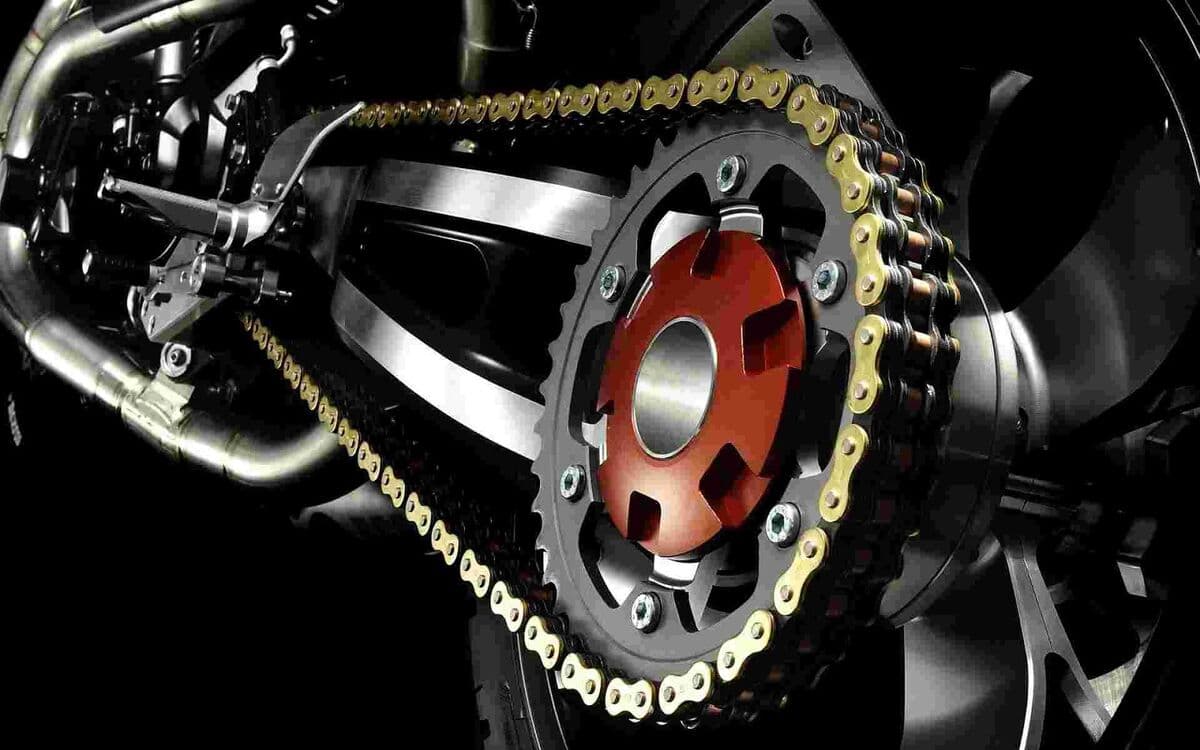

What are some of the advantages of a chain drive?
Maintains drive without slippage
Temperature conditions generally do not affect their working
Environmental conditions generally do not affect their working
All of the above
300s - Q5

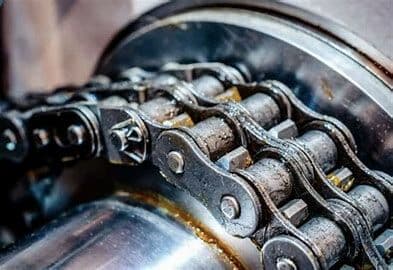

What could cause a chain drive to wear out quicker?
Users sort answers between categoriesSorting300s - Q6

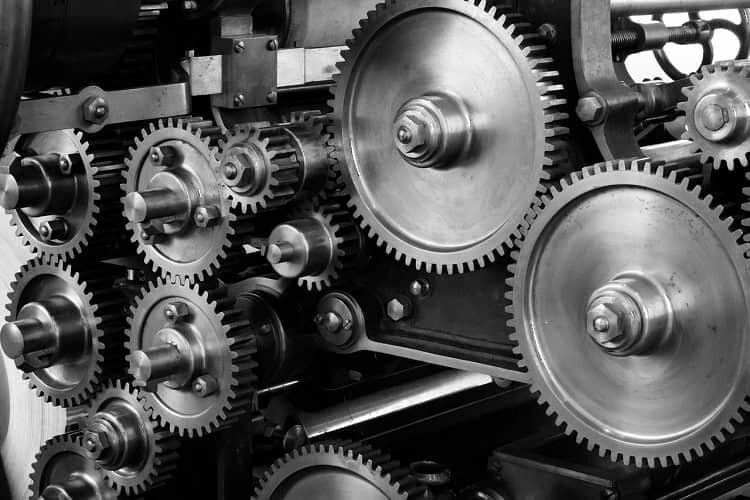

Match the gear type to it's application
Users link answersLinking300s - Q7

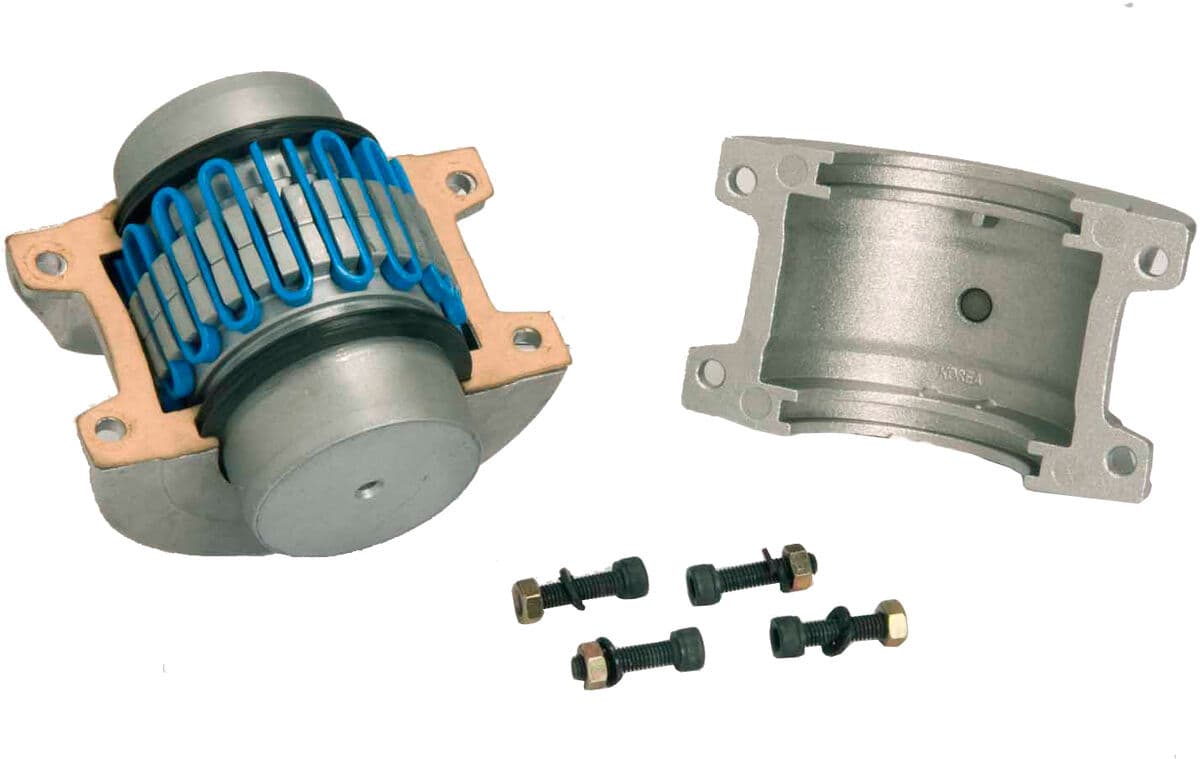

What is the name of the pictured coupling?
Flexible grid coupling
Fluid coupling
Gear coupling
Disc coupling
300s - Q8
What are some purposes of a flexible grid coupling?
To join two shafts together
To compensate for (minor) misalignment
To allow for end float, dampen vibration and absorb torque
All of the above
300s - Q9

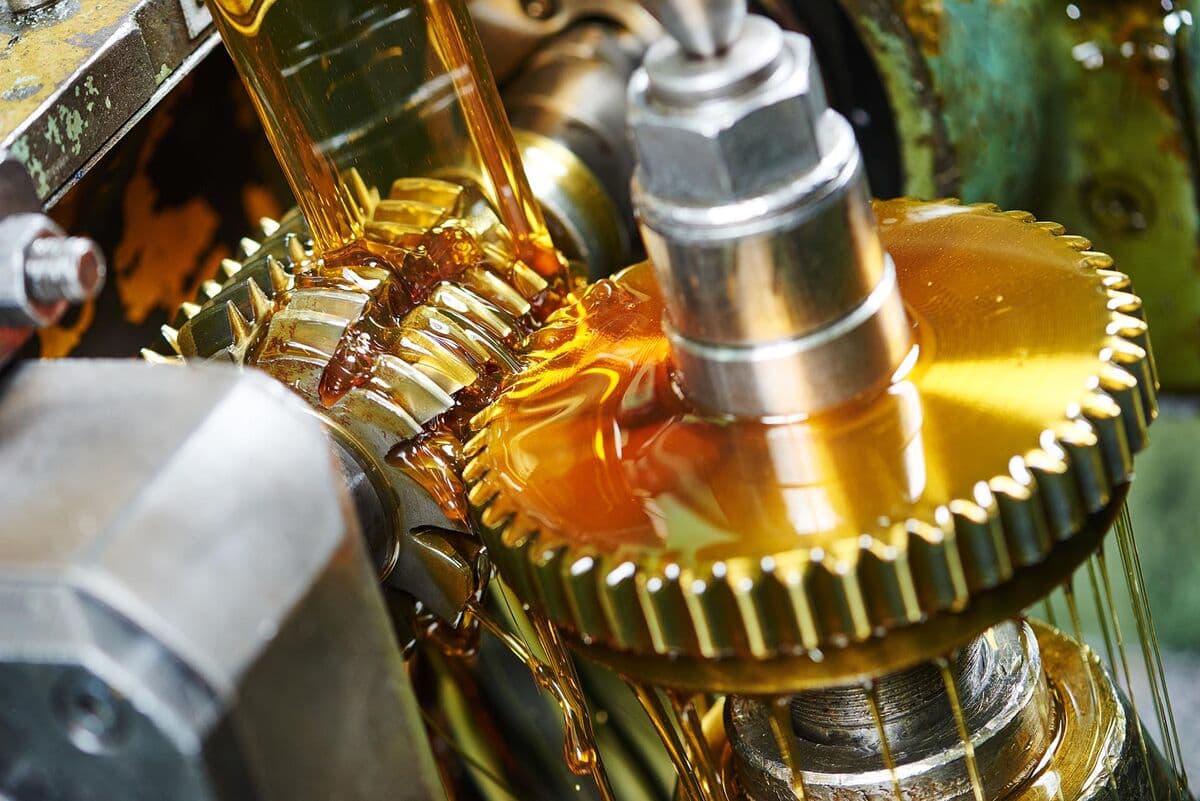

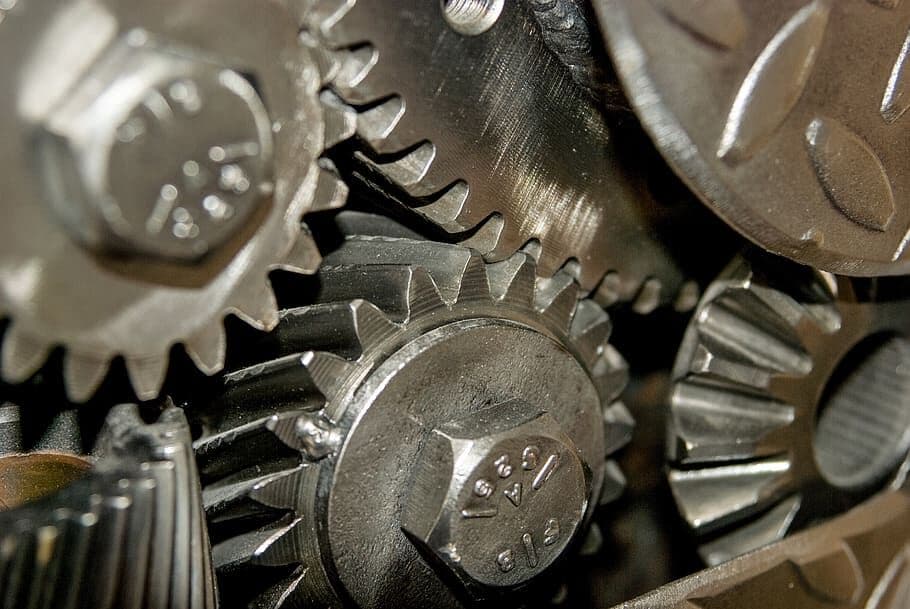

Select some of the maintenance requirements on gear drives
Users sort answers between categoriesSorting300s - Q10

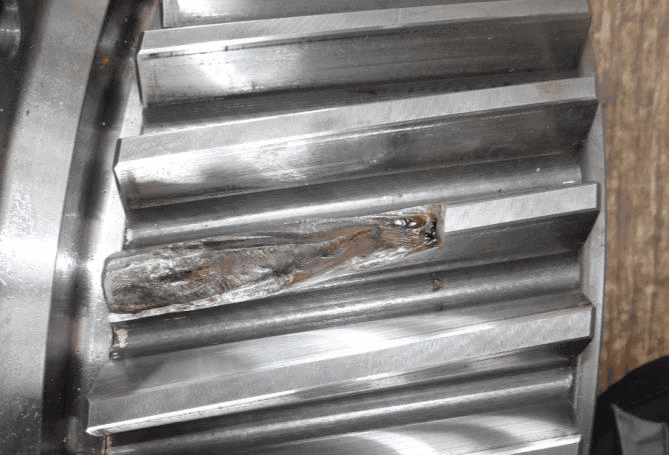

Which of the following would NOT be a cause of gear tooth breakage?
Continuous overloading ‘fatigue’
Backlash set within the correct specifications
Shock loading
Foreign objects
300s - Q11
Misalignment would not cause excessive wear to a coupling
falsetrueTrue or False300s - Q12
An incorrectly assembled coupling could be quite noisy
truefalseTrue or False300s - Q13

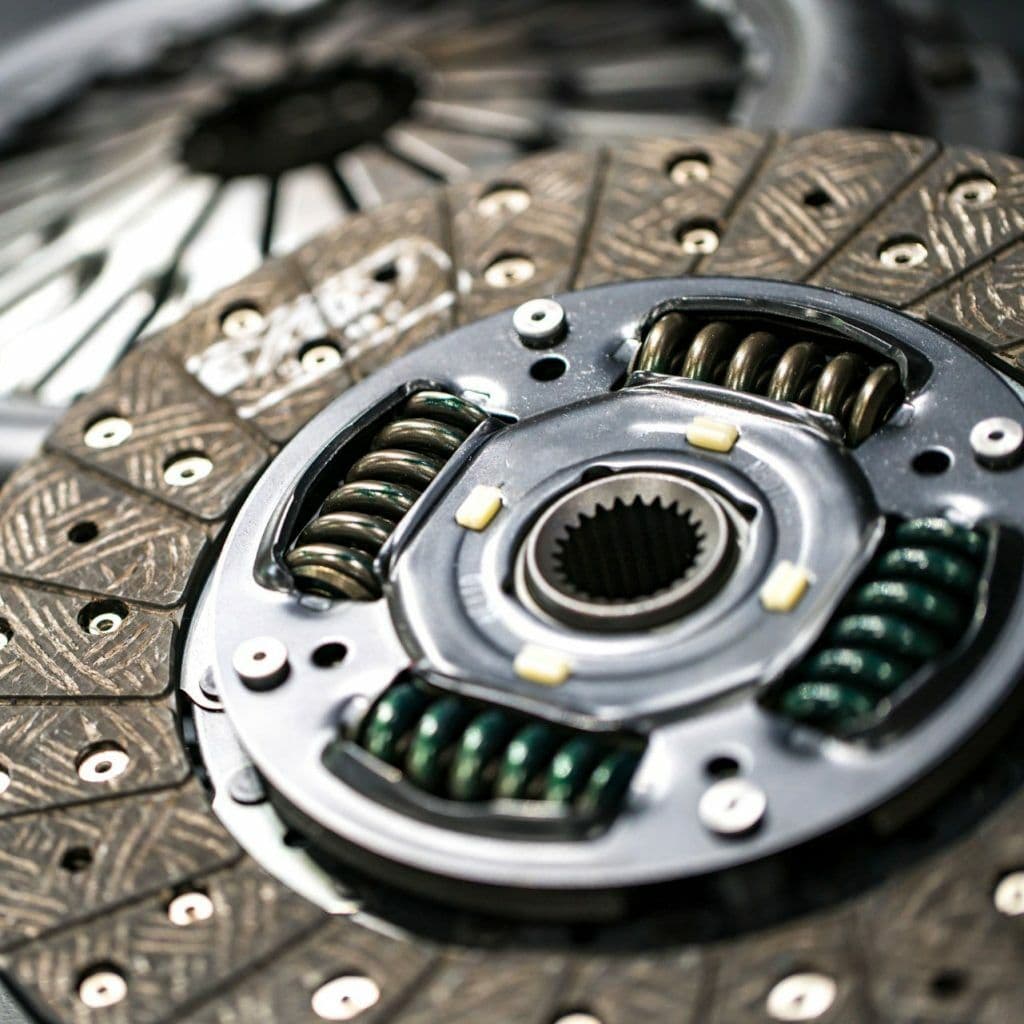

What component can be used as a decoupler between a driver and driven part of a machine?
Users re-arrange answers into correct orderJumble300s - Q14
When a clutch is disengaged, torque is no longer transferred from one shaft to the other
truefalseTrue or False300s - Q15

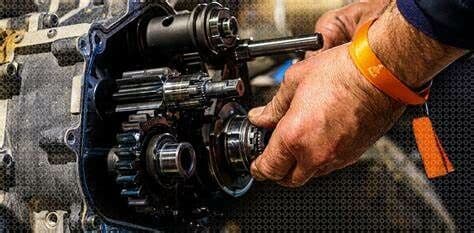

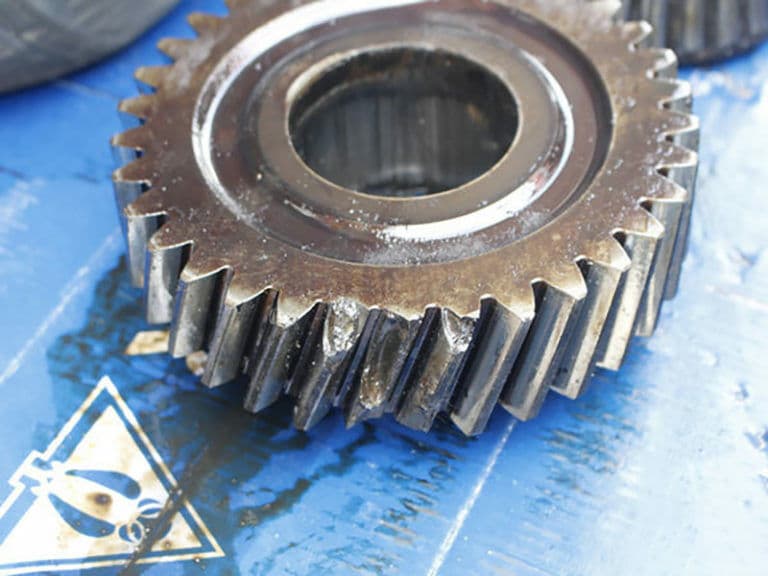

When inspecting the internal components of a gearbox, you have identified foreign metal particles and damage to a tooth on one of the gears. What steps would you take to rectify this issue?
Users link answersLinking30s
